DEHNguard MP ACI
DEHNguard modular with Advanced Circuit Interruption
DEHNguard modular with Advanced Circuit Interruption
When good gets even better: The DEHNguard MP surge arrester is now available with integrated terminal device protection and practical push-in double terminals. Saves time and space.
DEHNguard MP ACI strengthens our modular DEHNguard product family. The type 2 + 3 surge arrester with integrated protection of terminal equipment now comes with a practical push-in connection system.
Technical detailsYour benefits at a glance:
Safe dimensioning.
Due to ACI technology no external backup fuse required.
Fast set-up.
Reliable push-in connection system up to a pull-out force of 90 N. Tested to EN IEC 60947-1.
Long lifetime.
Zero leakage current due to galvanic isolation by ACI switching unit.
Easy wiring.
Small conductor cross-sections (6 mm² Cu) are sufficient. Increased availability. TOV withstand also at 440 V (AC).
Retrofit and save space
1. Push-in connection system
Up to 10 mm² (flexible, rigid, fine-stranded)
2. Remote signalling contact (optional)
With push-in-technology, for simple remote monitoring
3. Visible clamping
Fewer installation errors due to visual inspection
4. Feed-through wiring
For implementing EMC-optimised feed-through wiring as per IEC 60364-5-53
5. Certification
To VDE as type 2 + 3
DEHN protection solutions for single-family houses
DEHN provides you with coordinated solutions for a complete protection system so that everything functions smoothly in the modern home.
Make your home safe
DEHN protects single-family houses. Prevent unnecessary risks and implement an effective protection concept.
DetailsInstallation video
Productvariants

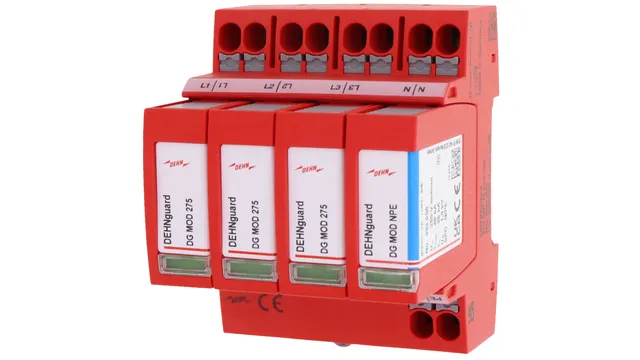

/www.dehn-international.com/store/f/41229601/HDVORSCHAU/942310.jpg)
942310
DEHNguard MP TT 275
Modular surge arrester type 2 + 3 with push-in double terminals. For TT and TN-S systems (3+1 circuit).
/www.dehn-international.com/store/f/41229649/HDVORSCHAU/942315.jpg)
942315
DEHNguard MP TT 275 FM
Modular surge arrester type 2 + 3 with push-in double terminals. For TT and TN-S systems (3+1 circuit). With potential-free remote signalling contact.

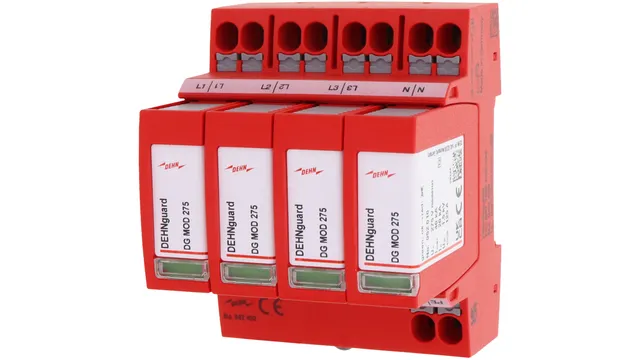

/www.dehn-international.com/store/f/41229551/HDVORSCHAU/942400.jpg)
942400
DEHNguard MP TNS 275
Modular surge arrester type 2 + 3 with push-in double terminals for TN-S systems.

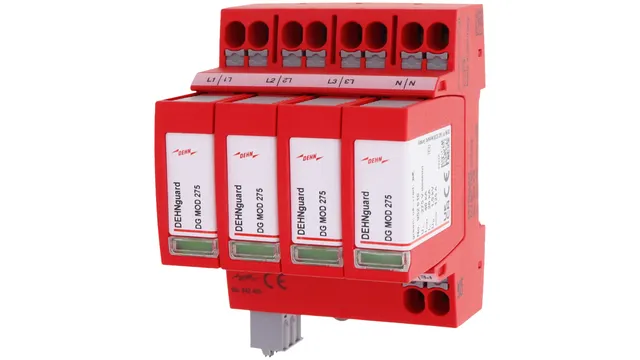

/www.dehn-international.com/store/f/41229575/HDVORSCHAU/942405.jpg)
942405
DEHNguard MP TNS 275 FM
Modular surge arrester type 2 + 3 with push-in double terminals for TN-S systems. With potential-free remote signalling contact.
/www.dehn-international.com/store/f/41113519/HDVORSCHAU/942341.jpg)
942341
DEHNguard MP TT ACI 275 FM
Modular surge arrester type 2 with push-in double terminals and ACI technology for TT and TN-S systems (3+1 circuit). With potential-free remote signalling contact.

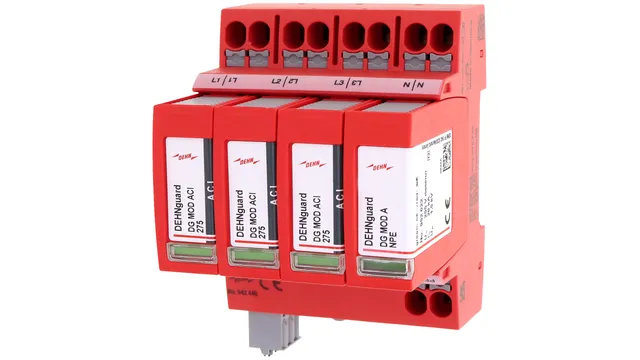

/www.dehn-international.com/store/f/41113492/HDVORSCHAU/942440.jpg)
Downloads
| Flyer | DEHNguard MP ACI | The surge arrester type 2+3 with practical push-in double terminals. | .pdf 0.6 MB |
| Flyer | DEHNguard MP | The surge arrester type 2+3 with practical push-in double terminals. | .pdf 0.6 MB |
