DEHNbox

Combined lightning current and surge arrester

Capable of carrying lightning currents up to 10 kA (10/350 µs)
Low voltage protection level, capable of protecting terminal equipment
For installation in conformity with the lightning protection zone concept at the boundaries from 0_A – 2 and higher

Easy to use

Suitable for wall mounting
Fast and easy installation due to spring-loaded terminals
Easy retrofitting of surge protection

Safe installation and operation (DBX TC B 180)

Status indication for easy maintenance
RJ45 connection possibility for plug & play
Universal use up to 1 Gbit

Details

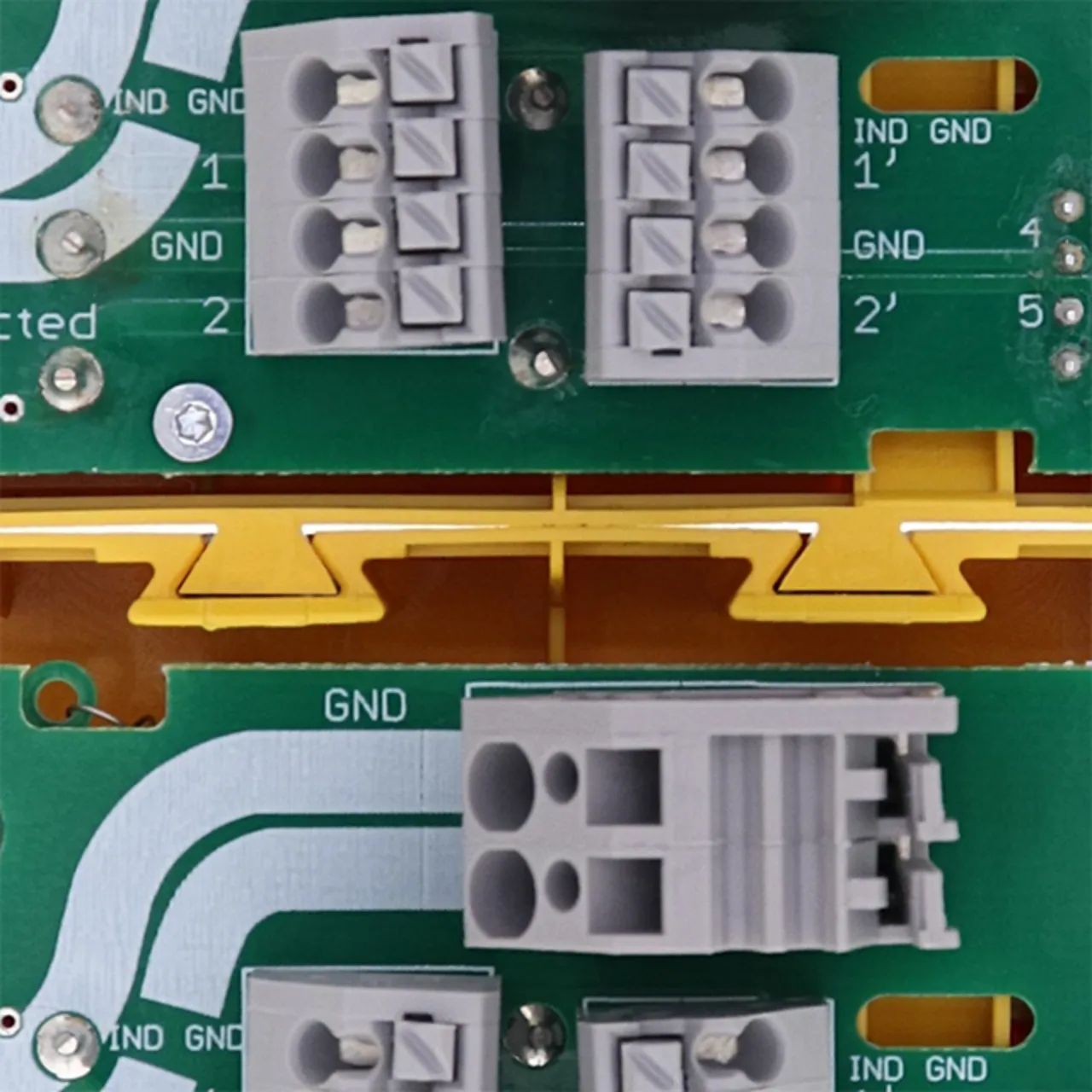

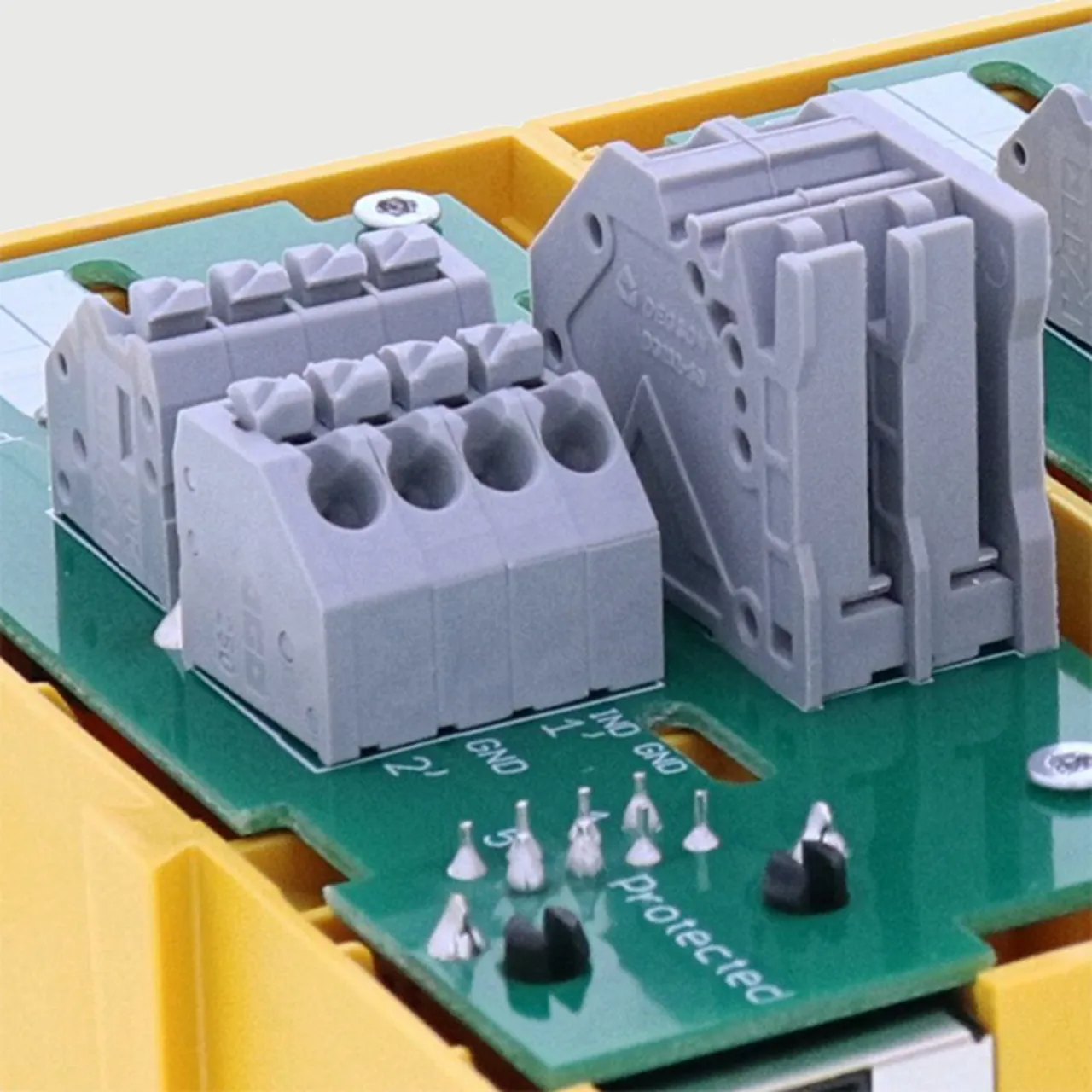

Push-in terminals for fast connection without tools (DBX TC B 180)

lorem ipsum — Push-in terminals for fast connection without tools (DBX TC B 180)

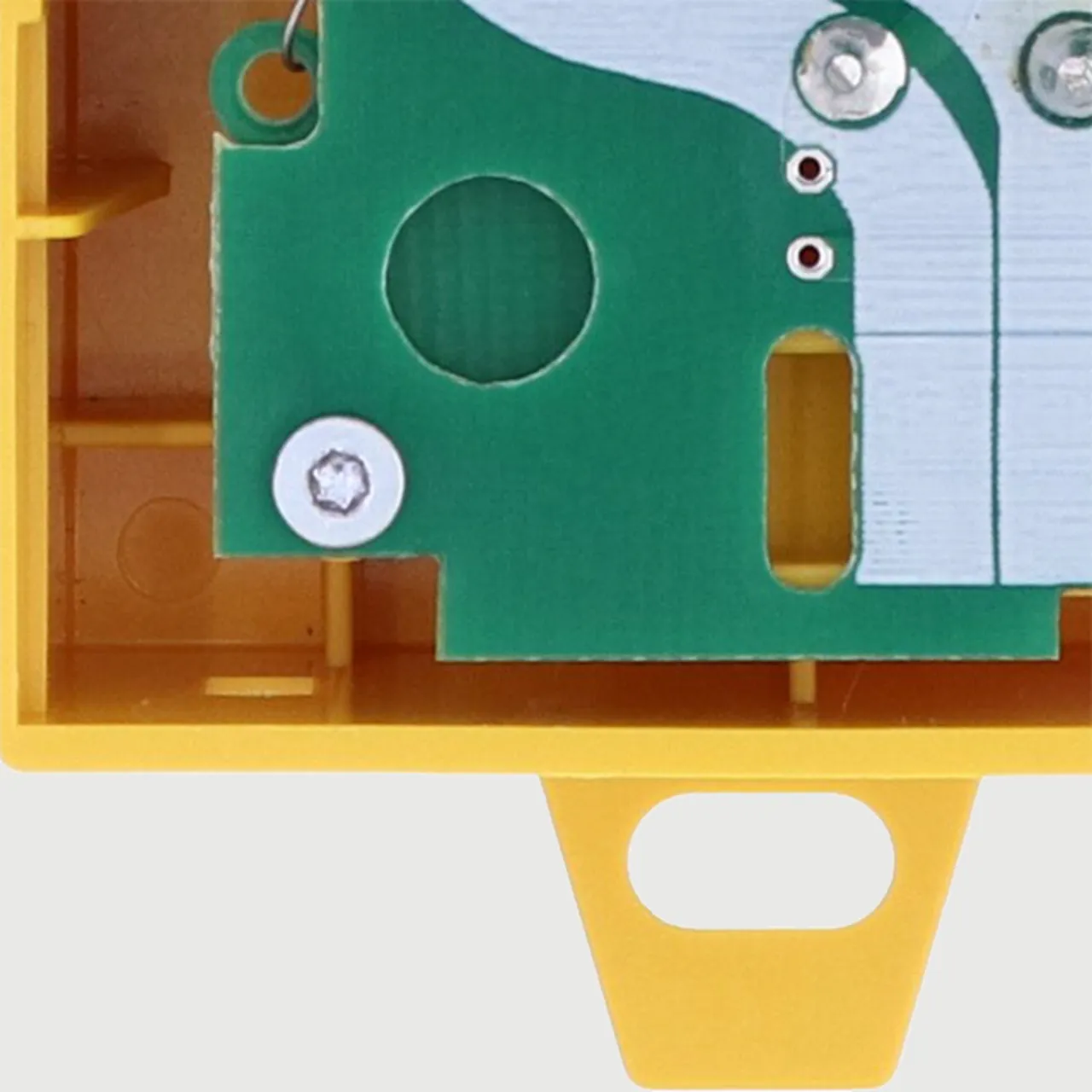

Side-by-side mounting of several devices thanks to slide-in dovetail connections on the enclosures (DBX TC B 180).

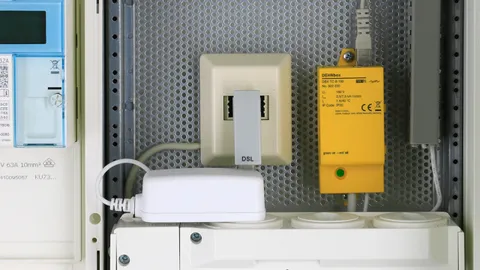

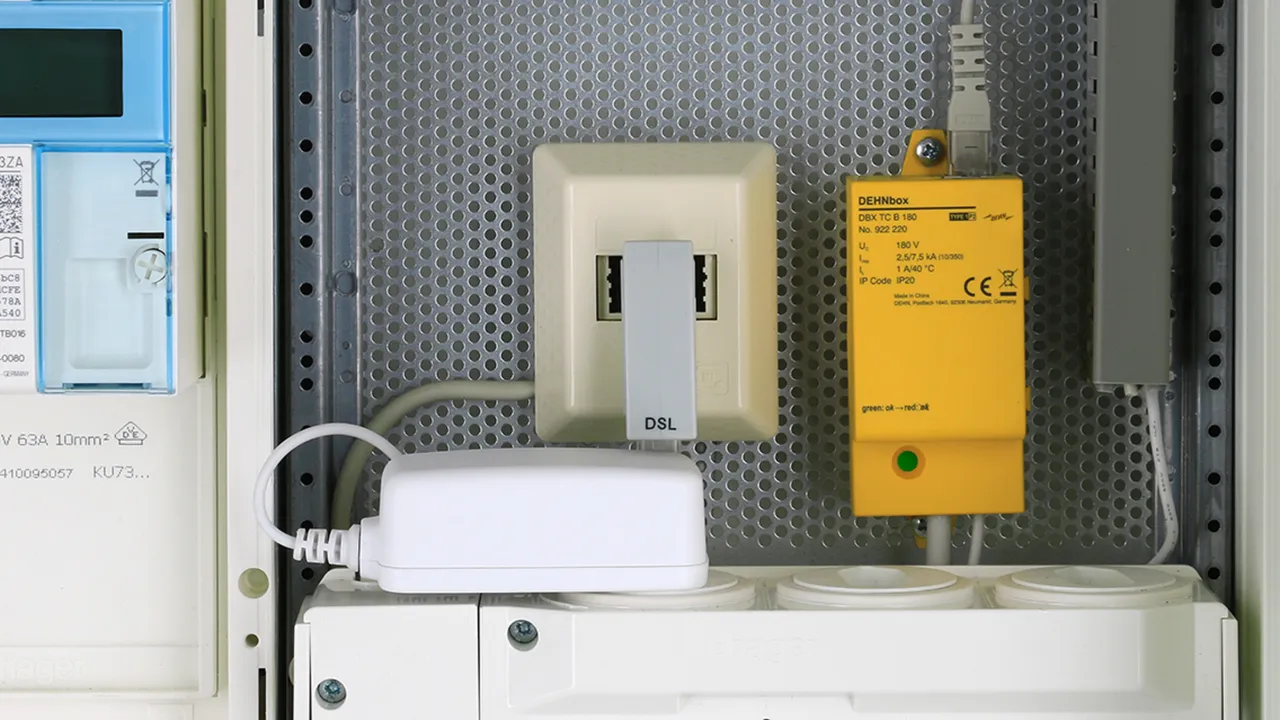

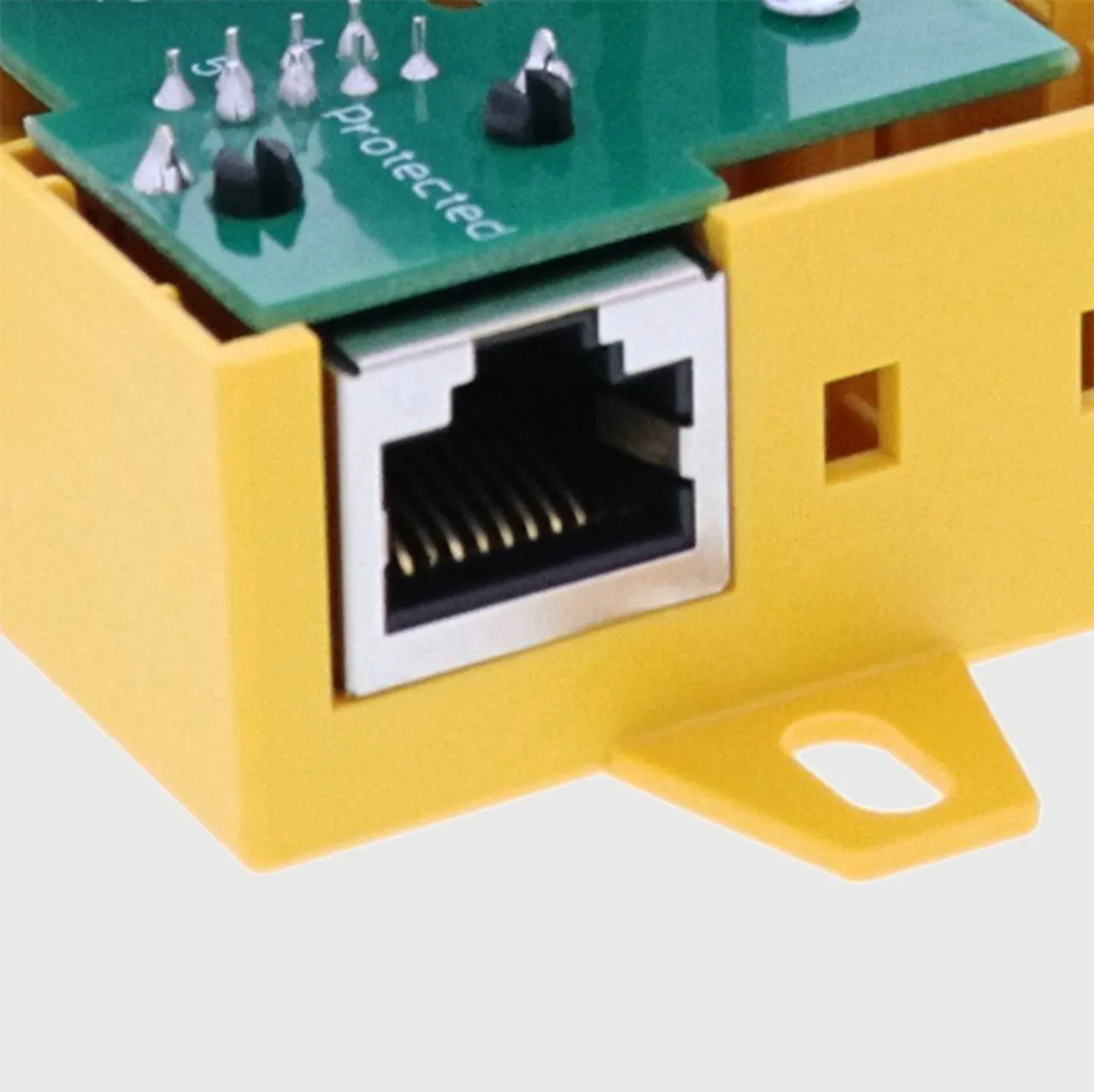

RJ45 socket at the output for direct connection to the router (DBX TC B 180).

Further information

Similar topics

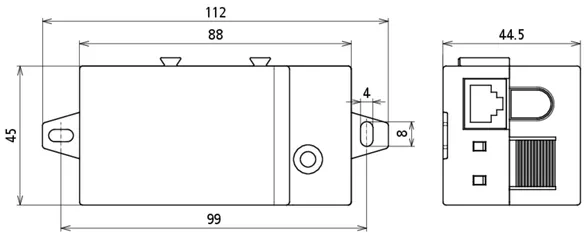

DBX TC B 180

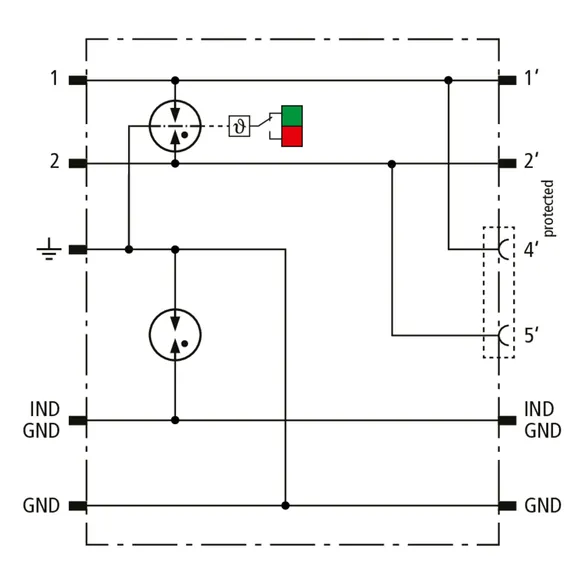

Space-saving, compact surge arrester in a surface-mounted plastic enclosure with push-in connection technology and status indication for protecting one pair of unearthed balanced interfaces, particularly telecommunication interfaces up to VVDSL and G.fast (up to 1 Gbit/s). Direct / indirect shield earthing possible. Connection of a pair or a patch cable with RJ45 plug at the output.

Tests by Deutsche Telekom Technik GmbH confirm compatibility with vectoring VDSL (VVDSL), super vectoring VDSL (SVVDSL) and G.Fast.

1 Product

Part No. 922220 DBX TC B 180

GTIN 4013364433953, Customs tariff No. (EU): 85363030, Gross weight: 93.63 g, PU: 1.00 pc(s)

Predecessor

Images

Additional information

CAD files

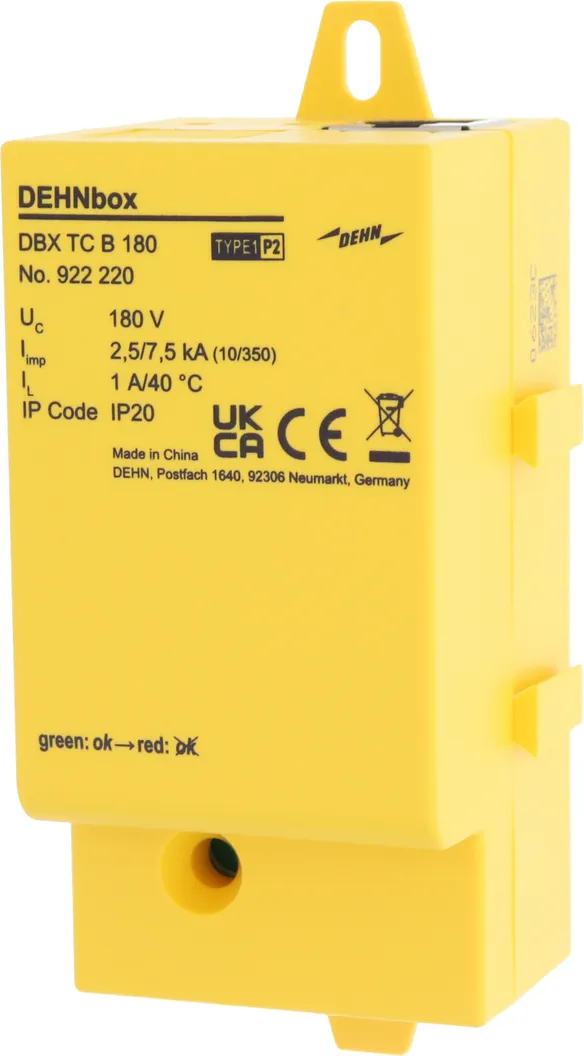

Compact DEHNbox DBX TC 180 lightning current arrester
Compact arrester can be connected in series
SPD class: type 1/P2
For protecting one pair of
telecommunication interfaces
For fast connection without tools
Integrated strain relief and status indication
Nominal current at 40°C: 1 A
D1 Total lightning impulse current (10/350 µs): 7.5 kA
C2 Total nominal discharge current (8/20 µs): 20 kA

Brand: DEHN
Type: DBX TC B 180
Part No.: 922220
or equivalent.

Certificates

Technical data

SPD class	L
Max. continuous operating voltage (d.c.) (U_C )	180 V
Nominal current at 40°C (I_L )	1 A
D1 Total lightning impulse current (10/350 µs) ( I_imp )	7.5 kA
C2 Total nominal discharge current (8/20 µs) ( I_n )	20 kA
Series resistance per line	0 ohms
Cut-off frequency line-line (100 ohms) (f_G )	425 MHz

SPD class	L
Impulse category	D1, C1, C2, C3, B2
Nominal voltage (U_N )	180 V
Max. continuous operating voltage (d.c.) (U_C )	180 V
Max. continuous operating voltage (a.c.) (U_C )	127 V
Nominal current at 40°C (I_L )	1 A
D1 Total lightning impulse current (10/350 µs) ( I_imp )	7.5 kA
D1 Lightning impulse current (10/350 µs) per line ( I_imp )	2.5 kA
C2 Total nominal discharge current (8/20 µs) ( I_n )	20 kA
C2 Nominal discharge current (8/20 µs) per line ( I_n )	10 kA
Voltage protection level line-line for I_nC2 (U_p )	≤ 900 V
Voltage protection level line-PG for I_nC2 (U_p )	≤ 650 V
Voltage protection level line-line at 1 kV/µs C3 (U_p )	≤ 620 V
Voltage protection level line-PG at 1 kV/µs C3 (U_p )	≤ 550 V
Series resistance per line	0 ohms
Cut-off frequency line-line (100 ohms) (f_G )	425 MHz
Capacitance line-line (C)	≤ 10 pF
Capacitance line-PG (C)	≤ 20 pF
Operating temperature range (T_U )	-25 °C ... +80 °C
Operating state / fault indication	green / red
Degree of protection	IP 20
Cross-sectional area (solid)	0.2-1.5 mm²
Cross-sectional area (fine stranded)	0.25-1.5 mm²
Cross-sectional area of the earth terminal	0.08-4 mm²
Enclosure material	polyamide PA 6.6
Connection (input)	push-in
Connection (output)	push-in / RJ45
Colour	yellow
Test standards	IEC 61643-21 / EN 61643-21

Product 922220 was added to Notepad.

Go to Notepad

Product 922220 was added to the cart.

Go to Web-Shop

DBX U4 KT BD S 0-180

Compact combined lightning current and surge arrester in a surface-mounted plastic enclosure with actiVsense technology for protecting two pairs with the same or a different signal voltage of galvanically isolated balanced interfaces. Direct or indirect shield earthing.

1 Product

Part No. 922400 DBX U4 KT BD S 0-180

GTIN 4013364137349, Customs tariff No. (EU): 85363010, Gross weight: 251.70 g, PU: 1.00 pc(s)

Images

Additional information

CAD files

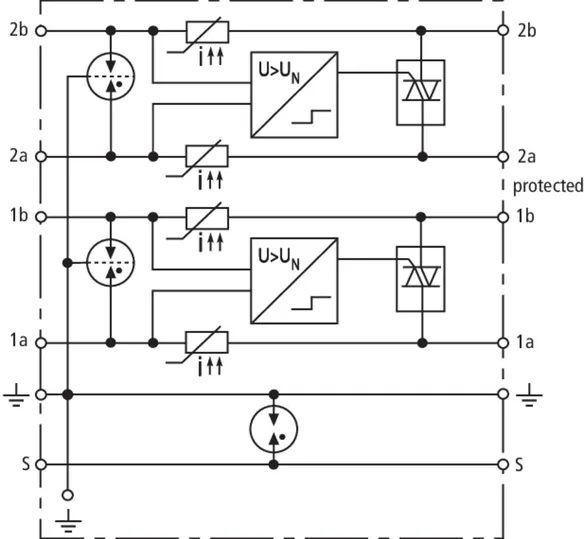

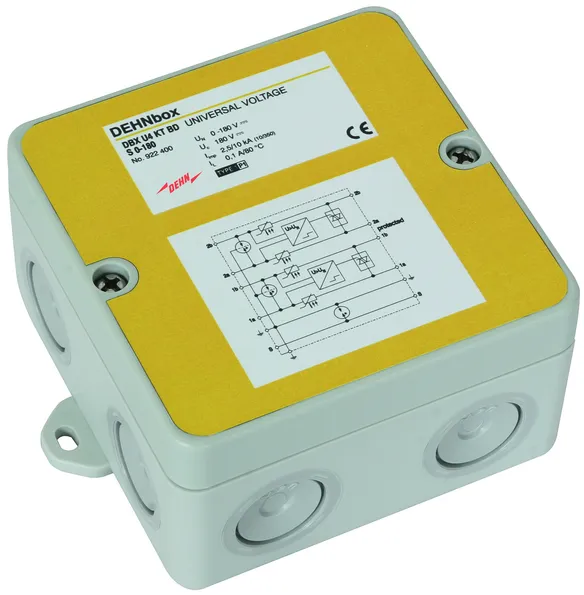

Compact DEHNbox DBX U4 KT BD S 0-180 combined arrester
Universal type 1/P1 lightning current and surge
arrester with actiVsense technology
for automatic detection of the operating voltage
and optimal adaptation of the voltage protection
level; tested to EN 61643-21 and energy-coordinated
according to IEC 61643-22 for protecting two pair
for galvanically isolated balanced interfaces,
optional direct or indirect shield earthing
Operating voltage: UN: 0-180 V
Permissible superimposed signal voltage: ≤ +/- 5 V
Nominal current (equals max. short-circuit current): 100 mA
D1 Total lightning impulse current (10/350 µs): 10 kA
C2 Total nominal discharge current (8/20 µs): 20 kA

Brand: DEHN
Type: DBX U4 KT BD S 0-180
Part No.: 922400
or equivalent.

Certificates

Technical data

SPD class	M
Max. continuous operating voltage (d.c.) (U_C )	180 V
Permissible superimposed signal voltage (U_signal )	≤ +/- 5 V
Cut-off frequency line-line (U_signal,balanced 100 ohms) (f_G )	50 MHz
Nominal current (equals max. short-circuit current) (I_L )	100 mA
D1 Total lightning impulse current (10/350 µs) ( I_imp )	10 kA
C2 Total nominal discharge current (8/20 µs) ( I_n )	20 kA
Series resistance per line	≤ 9 ohms; typically 7.9 ohms
Dimensions (L x W x H)	93 x 93 x 55 mm

SPD class	M
Nominal voltage (U_N )	0-180 V
Frequency of the nominal voltage (f_UN )	0-400 Hz
Max. continuous operating voltage (d.c.) (U_C )	180 V
Permissible superimposed signal voltage (U_signal )	≤ +/- 5 V
Cut-off frequency line-line (U_signal,balanced 100 ohms) (f_G )	50 MHz
Nominal current (equals max. short-circuit current) (I_L )	100 mA
D1 Total lightning impulse current (10/350 µs) ( I_imp )	10 kA
D1 Lightning impulse current (10/350 µs) per line ( I_imp )	2.5 kA
C2 Total nominal discharge current (8/20 µs) ( I_n )	20 kA
C2 Nominal discharge current (8/20 µs) per line ( I_n )	10 kA

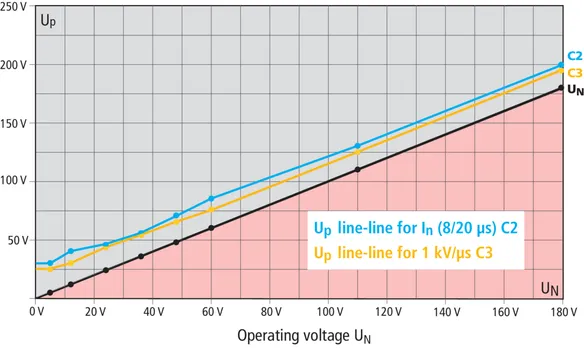

Voltage protection level line-line for I_nC2 (U_p )	see diagram, line C2
Voltage protection level line-line at 1 kV/µs C3 (U_p )	see diagram, line C3
Voltage protection level line-line for I_impD1 (U_p )	≤ U_N + 50 V
Voltage protection level line-PG for D1/C2/C3 (U_P )	≤ 550 V
Series resistance per line	≤ 9 ohms; typically 7.9 ohms
Capacitance line-line (C)	≤ 80 pF
Capacitance line-PG (C)	≤ 70 pF
Operating temperature range (T_U )	-25 °C ... +40 °C
Degree of protection	IP 65
Cross-sectional area of the signal lines	0.08-1.5 mm²
Cross-sectional area of the earth terminal	2.5-4 mm²
Dimensions (L x W x H)	93 x 93 x 55 mm
Enclosure material	polycarbonate
Colour	grey
Test standards	IEC 61643-21 / EN 61643-21
