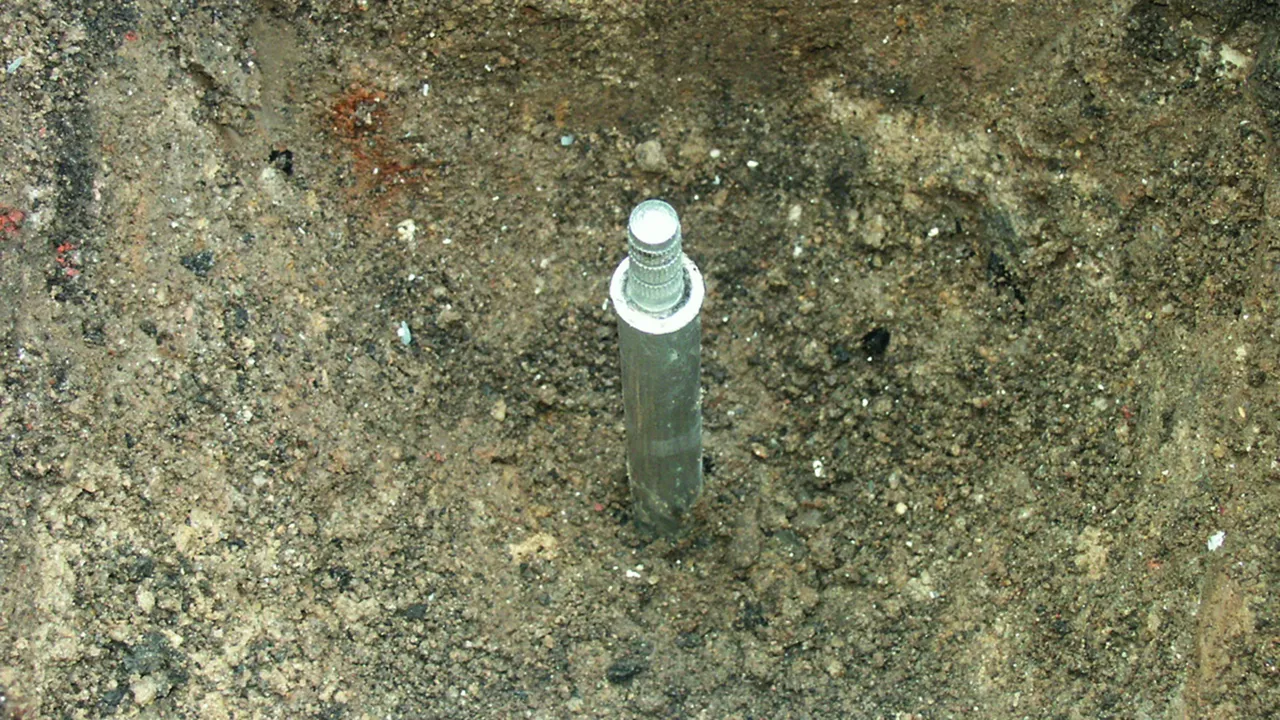

Jordspyd

Til oprettelse af jordingsanlæg til afledninger eller transformatorer.Karakteristika:

Ingen tværsnitsfortykkelse på koblingsstedet
Selvlukkende kobling
Korrosionsbestandighed
Forenklet opbevaring og transportmulighed
Kan anvendes universelt afhængigt af de lokale forhold
Konstante modstandsværdier

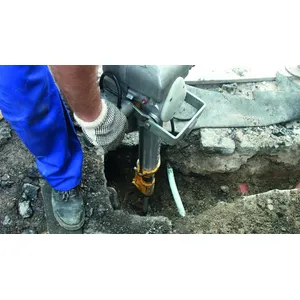

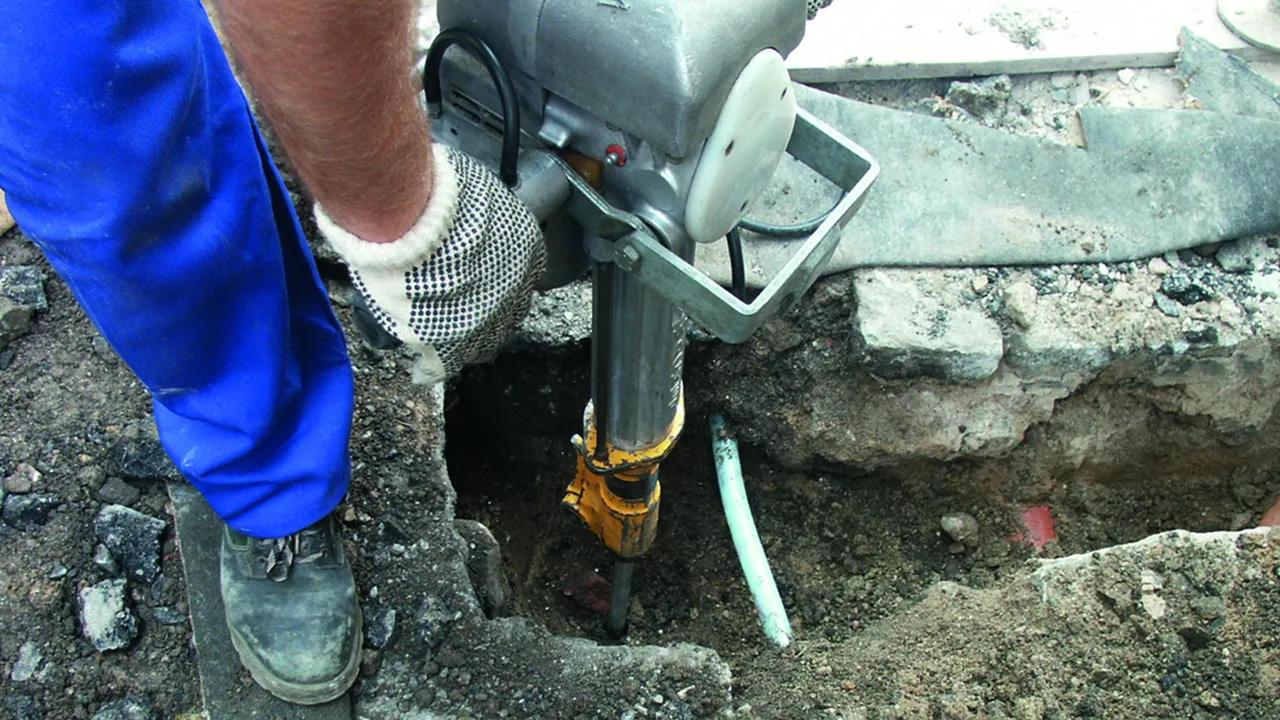

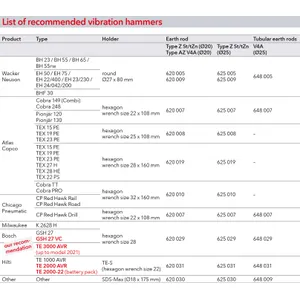

Enkel placering med slaghammer

Details

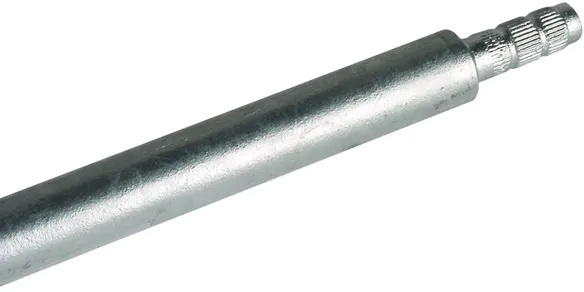

Type Z

Med tredobbelt riflet tap.

4 Products

Part No. 620101 TE 20 1000 Z STTZN

GTIN 4013364021860, Customs tariff No. (EU): 85389099, Gross weight: 2.50 kg, PU: 6.00 Pakkestørrelse

Images

Open PDF

Additional information

CAD files

Materiale: St/tZn
Længde (spyd): 1000 mm
Diameter Ø: 20 mm
Kortslutningsstrøm (AC 50 Hz/DC): 7,9 kA
Standard: DIN EN 62561-2

fabrikat: DEHN
Type: TE 20 1000 Z STTZN
artikelnr.: 620101
eller tilsvarende

Certificates

Technical data

Materiale	St/tZn
Længde (spyd) (l1)	1000 mm
Diameter Ø (d1)	20 mm
Kortslutningsstrøm (AC 50 Hz/DC) (1 s; ≤ 300 °C)	7,9 kA
Standard	DIN EN 62561-2

Materiale	St/tZn
Længde (spyd) (l1)	1000 mm
Diameter Ø (d1)	20 mm
Diameter (tap)	12 mm
Varmforzinket - enkeltværdi:	~70 µm
Varmforzinket - middelværdi:	≥ 55 µm
Trækstyrke	410 N/mm²
Statisk trækstyrke (vertikalt træk)	Ca. 22000 N
Specifik ledeevne	≥ 6,66 m / Ohm mm²
Specifik modstand	≤ 0,15 Ohm mm²/ m
Kortslutningsstrøm (AC 50 Hz/DC) (1 s; ≤ 300 °C)	7,9 kA
Standard	DIN EN 62561-2

Product 620101 was added to Notepad.

Go to Notepad

Product 620101 was added to the cart.

Go to Web-Shop

Part No. 620151 TE 20 1500 Z STTZN

GTIN 4013364021846, Customs tariff No. (EU): 85389099, Gross weight: 3.70 kg, PU: 6.00 Pakkestørrelse

Predecessor

Images

Open PDF

Additional information

CAD files

Materiale: St/tZn
Længde (spyd): 1500 mm
Diameter Ø: 20 mm
Kortslutningsstrøm (AC 50 Hz/DC): 7,9 kA
Standard: DIN EN 62561-2

fabrikat: DEHN
Type: TE 20 1500 Z STTZN
artikelnr.: 620151
eller tilsvarende

Certificates

Technical data

Materiale	St/tZn
Længde (spyd) (l1)	1500 mm
Diameter Ø (d1)	20 mm
Kortslutningsstrøm (AC 50 Hz/DC) (1 s; ≤ 300 °C)	7,9 kA
Standard	DIN EN 62561-2

Materiale	St/tZn
Længde (spyd) (l1)	1500 mm
Diameter Ø (d1)	20 mm
Diameter (tap)	12 mm
Varmforzinket - enkeltværdi:	~70 µm
Varmforzinket - middelværdi:	≥ 55 µm
Trækstyrke	410 N/mm²
Statisk trækstyrke (vertikalt træk)	Ca. 22000 N
Specifik ledeevne	≥ 6,66 m / Ohm mm²
Specifik modstand	≤ 0,15 Ohm mm²/ m
Kortslutningsstrøm (AC 50 Hz/DC) (1 s; ≤ 300 °C)	7,9 kA
Standard	DIN EN 62561-2

Product 620151 was added to Notepad.

Go to Notepad

Product 620151 was added to the cart.

Go to Web-Shop

Part No. 625101 TE 25 1000 Z STTZN

GTIN 4013364021877, Customs tariff No. (EU): 85389099, Gross weight: 3.72 kg, PU: 6.00 Pakkestørrelse

Images

Open PDF

Additional information

CAD files

Materiale: St/tZn
Længde (spyd): 1000 mm
Diameter Ø: 25 mm
Kortslutningsstrøm (AC 50 Hz/DC): 12,3 kA
Standard: DIN EN 62561-2

fabrikat: DEHN
Type: TE 25 1000 Z STTZN
artikelnr.: 625101
eller tilsvarende

Certificates

Technical data

Materiale	St/tZn
Længde (spyd) (l1)	1000 mm
Diameter Ø (d1)	25 mm
Kortslutningsstrøm (AC 50 Hz/DC) (1 s; ≤ 300 °C)	12,3 kA
Standard	DIN EN 62561-2

Materiale	St/tZn
Længde (spyd) (l1)	1000 mm
Diameter Ø (d1)	25 mm
Diameter (tap)	15 mm
Varmforzinket - enkeltværdi:	~70 µm
Varmforzinket - middelværdi:	≥ 55 µm
Trækstyrke	410 N/mm²
Statisk trækstyrke (vertikalt træk)	Ca. 32000 N
Specifik ledeevne	≥ 6,66 m / Ohm mm²
Specifik modstand	≤ 0,15 Ohm mm²/ m
Kortslutningsstrøm (AC 50 Hz/DC) (1 s; ≤ 300 °C)	12,3 kA
Standard	DIN EN 62561-2

Product 625101 was added to Notepad.

Go to Notepad

Product 625101 was added to the cart.

Go to Web-Shop

Part No. 625151 TE 25 1500 Z STTZN

GTIN 4013364021853, Customs tariff No. (EU): 85389099, Gross weight: 5.72 kg, PU: 6.00 Pakkestørrelse

Predecessor

Images

Open PDF

Additional information

CAD files

Materiale: St/tZn
Længde (spyd): 1500 mm
Diameter Ø: 25 mm
Kortslutningsstrøm (AC 50 Hz/DC): 12,3 kA
Standard: DIN EN 62561-2

fabrikat: DEHN
Type: TE 25 1500 Z STTZN
artikelnr.: 625151
eller tilsvarende

Certificates

Technical data

Materiale	St/tZn
Længde (spyd) (l1)	1500 mm
Diameter Ø (d1)	25 mm
Kortslutningsstrøm (AC 50 Hz/DC) (1 s; ≤ 300 °C)	12,3 kA
Standard	DIN EN 62561-2

Materiale	St/tZn
Længde (spyd) (l1)	1500 mm
Diameter Ø (d1)	25 mm
Diameter (tap)	15 mm
Varmforzinket - enkeltværdi:	~70 µm
Varmforzinket - middelværdi:	≥ 55 µm
Trækstyrke	410 N/mm²
Statisk trækstyrke (vertikalt træk)	Ca. 32000 N
Specifik ledeevne	≥ 6,66 m / Ohm mm²
Specifik modstand	≤ 0,15 Ohm mm²/ m
Kortslutningsstrøm (AC 50 Hz/DC) (1 s; ≤ 300 °C)	12,3 kA
Standard	DIN EN 62561-2

Product 625151 was added to Notepad.

Go to Notepad

Product 625151 was added to the cart.

Go to Web-Shop

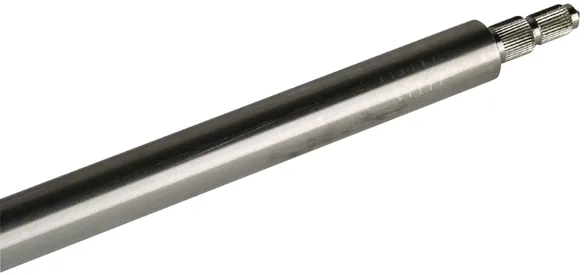

Type AZ

Med afdrejet og riflet tap.

2 Products

Part No. 620903 TE 20 1000 AZ V4A

GTIN 4013364342859, Customs tariff No. (EU): 85389099, Gross weight: 2.43 kg, PU: 6.00 Pakkestørrelse

Images

Open PDF

Additional information

CAD files

Jordspyd type AZ NIRO (V4A), længde 1000 mm
Jordspyd til oprettelse af jordingsanlæg til afledninger eller transformatorer
Type AZ, med afdrejet, riflet tap
Materiale: Rustfrit (V4A)
Materiale-nr.: 1.4571 / 1.4404 / 1.4401
Længde (spyd): 1000 mm
Diameter Ø: 20 mm
Kortslutningsstrøm (AC 50 Hz/DC): 4,2 kA
Standard: DIN EN 62561-2

fabrikat: DEHN
Type: TE 20 1000 AZ V4A
artikelnr.: 620903
eller tilsvarende

Certificates

Technical data

Materiale	Rustfrit (V4A)
Materiale-nr.	1.4571 / 1.4404 / 1.4401
Længde (spyd) (l1)	1000 mm
Diameter Ø (d1)	20 mm
Kortslutningsstrøm (AC 50 Hz/DC) (1 s; ≤ 300 °C)	4,2 kA
Standard	DIN EN 62561-2

Materiale	Rustfrit (V4A)
Materiale-nr.	1.4571 / 1.4404 / 1.4401
Længde (spyd) (l1)	1000 mm
Diameter Ø (d1)	20 mm
Diameter (tap)	10 / 13 mm
Trækstyrke	500-730 N/mm²
Specifik ledeevne	≥ 1,25 m / Ohm mm²
Specifik modstand	≤ 0,8 Ohm mm²/ m
Kortslutningsstrøm (AC 50 Hz/DC) (1 s; ≤ 300 °C)	4,2 kA
Standard	DIN EN 62561-2

Product 620903 was added to Notepad.

Go to Notepad

Product 620903 was added to the cart.

Go to Web-Shop

Part No. 620902 TE 20 1500 AZ V4A

GTIN 4013364021914, Customs tariff No. (EU): 85389099, Gross weight: 3.67 kg, PU: 6.00 Pakkestørrelse

Images

Open PDF

Additional information

CAD files

Materiale: Rustfrit (V4A)
Materiale-nr.: 1.4571 / 1.4404 / 1.4401
Længde (spyd): 1500 mm
Diameter Ø: 20 mm
Kortslutningsstrøm (AC 50 Hz/DC): 4,2 kA
Standard: DIN EN 62561-2

fabrikat: DEHN
Type: TE 20 1500 AZ V4A
artikelnr.: 620902
eller tilsvarende

Certificates

Technical data

Materiale	Rustfrit (V4A)
Materiale-nr.	1.4571 / 1.4404 / 1.4401
Længde (spyd) (l1)	1500 mm
Diameter Ø (d1)	20 mm
Kortslutningsstrøm (AC 50 Hz/DC) (1 s; ≤ 300 °C)	4,2 kA
Standard	DIN EN 62561-2

Materiale	Rustfrit (V4A)
Materiale-nr.	1.4571 / 1.4404 / 1.4401
Længde (spyd) (l1)	1500 mm
Diameter Ø (d1)	20 mm
Diameter (tap)	10 / 13 mm
Trækstyrke	500-730 N/mm²
Specifik ledeevne	≥ 1,25 m / Ohm mm²
Specifik modstand	≤ 0,8 Ohm mm²/ m
Kortslutningsstrøm (AC 50 Hz/DC) (1 s; ≤ 300 °C)	4,2 kA
Standard	DIN EN 62561-2

Product 620902 was added to Notepad.

Go to Notepad

Product 620902 was added to the cart.

Go to Web-Shop

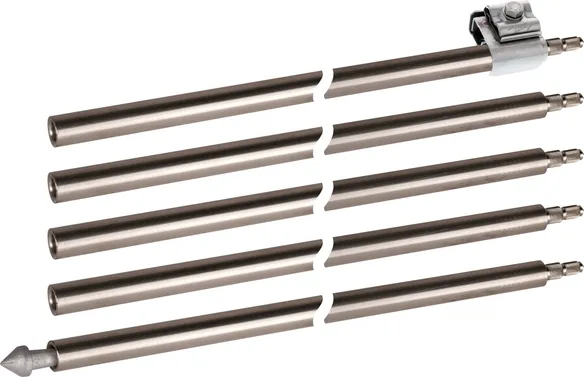

Jordspyd sæt D18014

DEHN-jordspydssæt D18 014 kombinerbart, med afdrejet, riflet tap og borehul, D= 20 mm. Bestående af:

5x jordspyd 1 m varenr. 620 903
1x slagspids varenr. 620 001
1x tilslutningsklemme varenr. 540 121

1 Product

Part No. D18014 D18014 5XTE D20 1XAK 8.10 1XSSP

GTIN 4013364557741, Customs tariff No. (EU): 85359000, Gross weight: 12.25 kg, PU: 1.00 Pakkestørrelse

Images

Open PDF

Additional information

DEHN-jordspydssæt D18 014
kombinerbart, med
afdrejet, riflet tap og
borehul, D= 20 mm. Bestående af
5x jordspyd 1 m varenr. 620 903
+ 1x slagspids varenr. 620 001
+ 1x tilslutningsklemme varenr. 540 121

fabrikat: DEHN
Type: D18014 5XTE D20 1XAK 8.10 1XSSP
artikelnr.: D18014
eller tilsvarende

Technical data

Materiale (jordspyd)	NIRO (V4A)
Materiale-nr. (jordspyd)	1.4571 / 1.4404 / 1.4401
ASTM / AISI: (jordspyd)	316Ti / 316L / 316
Længde (spyd) (jordspyd)	1000 mm
Diameter Ø (jordspyd)	20 mm
Diameter (tap) (jordspyd)	10 / 13 mm
Trækstyrke (jordspyd)	500-730 N/mm²
Specifik ledeevne (jordspyd)	≥ 1,25 m/ohm mm²
Specifik modstand (jordspyd)	≤ 0,8 ohm mm² / m
Kortslutningsstrøm (AC 50 Hz/DC) (jordspyd) (1 s; ≤ 300 °C)	4,2 kA
Standarder (jordspyd)	DIN EN 62561-2
-	-
Materiale (tilslutningsklemme)	NIRO (V4A)
Materiale-nr. (tilslutningsklemme)	1.4571 / 1.4404 / 1.4401
ASTM / AISI: (tilslutningsklemme)	316Ti / 316L / 316
Til jordspyd Ø (tilslutningsklemme)	20-25 mm
Klemmeområde (rund) (tilslutningsklemme)	8-10 mm
Tilslutning (massiv/flertrådet) (tilslutningsklemme)	4-50 mm²
Skrue (tilslutningsklemme)	di M8 x 20 / 25 mm
Lynstrømsbæreevne (10/350 µs) (tilslutningsklemme)	= *⁾
Standarder (tilslutningsklemme)	DIN EN 62561-1
--	--
Materiale (slagspids)	TG/tZn
Udgave (slagspids)	til jordspyd Ø20 mm
Mål (slagspids)	20 x 40 mm

Materiale (jordspyd)	NIRO (V4A)
Materiale-nr. (jordspyd)	1.4571 / 1.4404 / 1.4401
ASTM / AISI: (jordspyd)	316Ti / 316L / 316
Længde (spyd) (jordspyd)	1000 mm
Diameter Ø (jordspyd)	20 mm
Diameter (tap) (jordspyd)	10 / 13 mm
Trækstyrke (jordspyd)	500-730 N/mm²
Specifik ledeevne (jordspyd)	≥ 1,25 m/ohm mm²
Specifik modstand (jordspyd)	≤ 0,8 ohm mm² / m
Kortslutningsstrøm (AC 50 Hz/DC) (jordspyd) (1 s; ≤ 300 °C)	4,2 kA
Standarder (jordspyd)	DIN EN 62561-2
-	-
Materiale (tilslutningsklemme)	NIRO (V4A)
Materiale-nr. (tilslutningsklemme)	1.4571 / 1.4404 / 1.4401
ASTM / AISI: (tilslutningsklemme)	316Ti / 316L / 316
Til jordspyd Ø (tilslutningsklemme)	20-25 mm
Klemmeområde (rund) (tilslutningsklemme)	8-10 mm
Tilslutning (massiv/flertrådet) (tilslutningsklemme)	4-50 mm²
Skrue (tilslutningsklemme)	di M8 x 20 / 25 mm
Lynstrømsbæreevne (10/350 µs) (tilslutningsklemme)	= *⁾
Standarder (tilslutningsklemme)	DIN EN 62561-1
--	--
Materiale (slagspids)	TG/tZn
Udgave (slagspids)	til jordspyd Ø20 mm
Mål (slagspids)	20 x 40 mm

Product D18014 was added to Notepad.

Go to Notepad

Product D18014 was added to the cart.

Go to Web-Shop

Results for products (0)

Results for content (0)

Jordspyd

Details

Type Z

Part No. 620101 TE 20 1000 Z STTZN

Product 620101 was added to Notepad.

Product 620101 was added to the cart.

Part No. 620151 TE 20 1500 Z STTZN

Product 620151 was added to Notepad.

Product 620151 was added to the cart.

Part No. 625101 TE 25 1000 Z STTZN

Product 625101 was added to Notepad.

Product 625101 was added to the cart.

Part No. 625151 TE 25 1500 Z STTZN

Product 625151 was added to Notepad.

Product 625151 was added to the cart.

Type AZ

Part No. 620903 TE 20 1000 AZ V4A

Product 620903 was added to Notepad.

Product 620903 was added to the cart.

Part No. 620902 TE 20 1500 AZ V4A

Product 620902 was added to Notepad.

Product 620902 was added to the cart.

Jordspyd sæt D18014

Part No. D18014 D18014 5XTE D20 1XAK 8.10 1XSSP

Product D18014 was added to Notepad.

Product D18014 was added to the cart.

Jordspyd

Details

Type Z

Part No. 620101 TE 20 1000 Z STTZN

You are not authorized to download 620101.stp

You are not authorized to download 620101.igs

You are not authorized to download 620101.jt

You are not authorized to download 620101.dwg

You are not authorized to download 620101m_D.dxf

Product 620101 was added to Notepad.

Product 620101 was added to the cart.

Part No. 620151 TE 20 1500 Z STTZN

You are not authorized to download 620151.stp

You are not authorized to download 620151.igs

You are not authorized to download 620151.jt

You are not authorized to download 620151.dwg

You are not authorized to download 620101m_D.dxf

Product 620151 was added to Notepad.

Product 620151 was added to the cart.

Part No. 625101 TE 25 1000 Z STTZN

You are not authorized to download 625101.stp

You are not authorized to download 625101.igs

You are not authorized to download 625101.jt

You are not authorized to download 625101.dwg

You are not authorized to download 620101m_D.dxf

Product 625101 was added to Notepad.

Product 625101 was added to the cart.

Part No. 625151 TE 25 1500 Z STTZN

You are not authorized to download 625151.stp

You are not authorized to download 625151.igs

You are not authorized to download 625151.jt

You are not authorized to download 625151.dwg

You are not authorized to download 620101m_D.dxf

Product 625151 was added to Notepad.

Product 625151 was added to the cart.

Type AZ

Part No. 620903 TE 20 1000 AZ V4A

You are not authorized to download 620903.stp

You are not authorized to download 620903.igs

You are not authorized to download 620903.jt

You are not authorized to download 620903.dwg

You are not authorized to download 620903m_D.dxf

Product 620903 was added to Notepad.

Product 620903 was added to the cart.

Part No. 620902 TE 20 1500 AZ V4A

You are not authorized to download 620902.stp

You are not authorized to download 620902.igs

You are not authorized to download 620902.jt

You are not authorized to download 620902.dwg

You are not authorized to download 620902m_D.dxf

Product 620902 was added to Notepad.

Product 620902 was added to the cart.

Jordspyd sæt D18014

Part No. D18014 D18014 5XTE D20 1XAK 8.10 1XSSP

Product D18014 was added to Notepad.

Product D18014 was added to the cart.
