FS Clamps (Air-termination Rod Clamps)

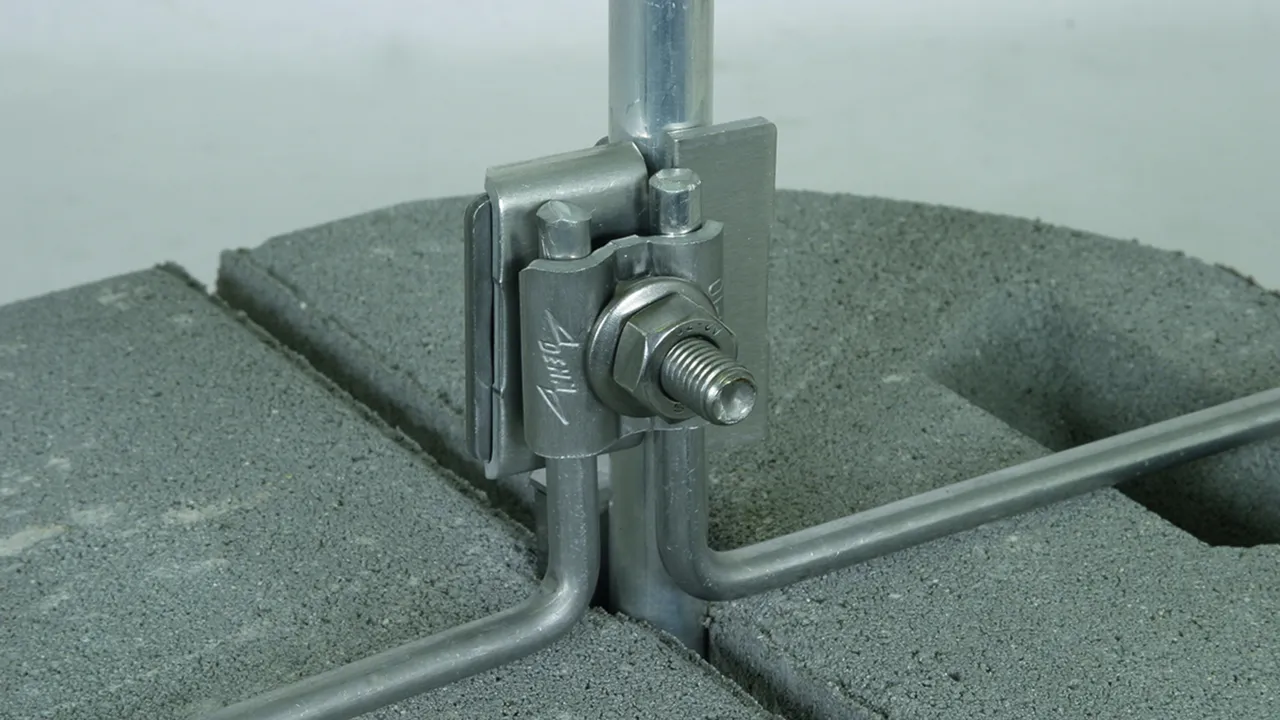

Air-termination rod clamps for connecting air-termination rods/tips to one or two conductors.
Connection of two conductors improves the lightning current distribution and thus reduces the separation distance.
With special plate for lengthwise and crosswise connection.
Connection of two conductors improves the lightning current distribution and thus reduces the separation distance.
With special plate for lengthwise and crosswise connection.

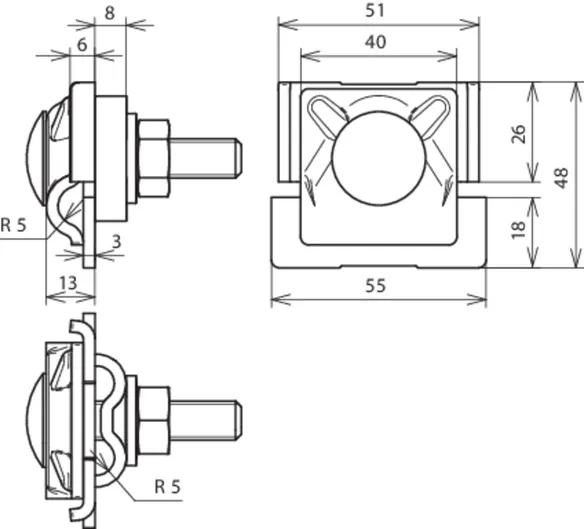

For air-termination tip 10 mm
Art.-Nr. 380110
FSK 3X8.10 FRM10X50 AL
item

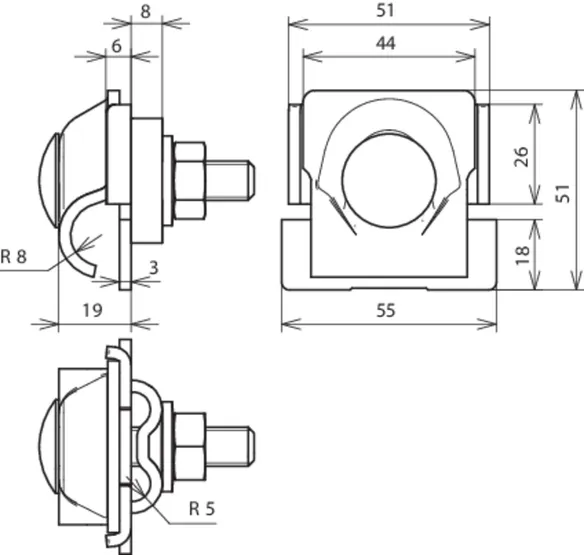

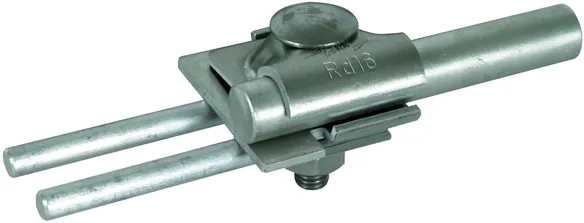

For air-termination rod 16 mm
Art.-Nr. 380116
FSK 2X8.10 16 FRM10X50 AL
item
