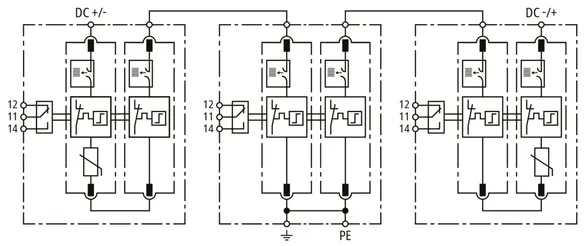

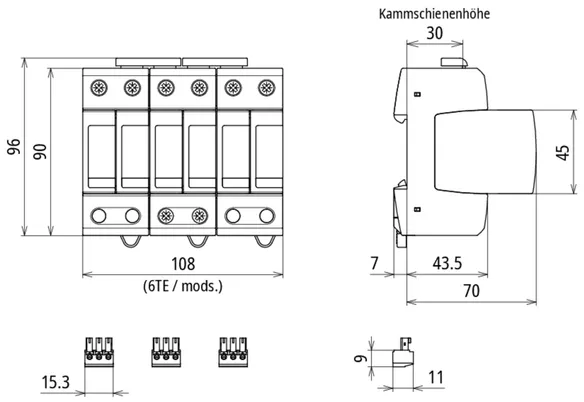

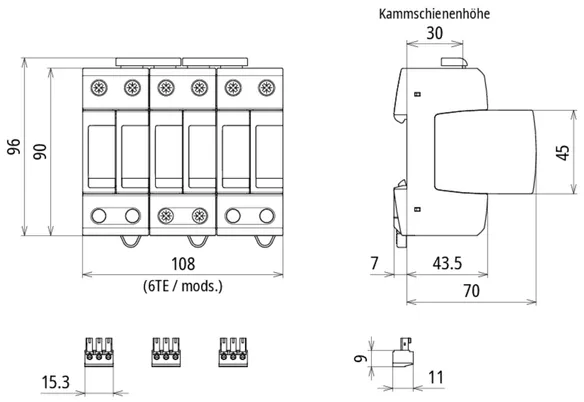

Part No. 972150 DG M DC ACI 1250 FM

GTIN 4013364530850, Customs tariff No. (EU): 85354000, Gross weight: 757.40 g, PU: 1.00 pc(s)

Images

Additional information

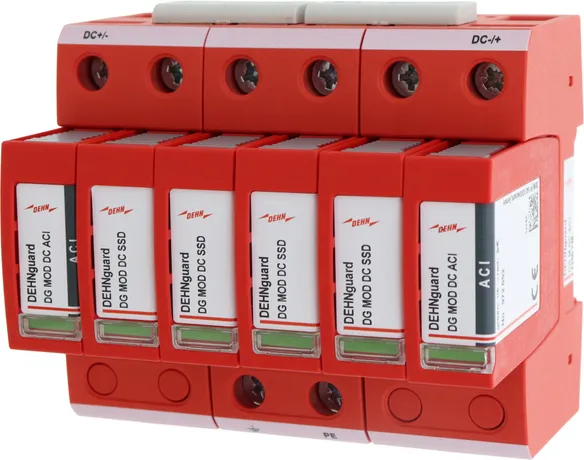

Surge protective device Type 2, DG M DC ACI 1250 FM
modular, pluggable surge arrester
for DC applications, width of 6 DIN modules
Mechanical operating / fault state indication
Type 2 arrester similar to EN / IEC 61643-41
consisting of switch/spark gap combination
Specially for use in DC charging equipment up to 1,250 V
Max. continuous operating voltage (+ --> -): 1250 V DC
Nominal discharge current (8/20 µs): 10 kA
Floating remote signalling contact as changeover contact
Vibration and shock-tested according to EN 60068
Fulfils IEC 61851-23

Brand: DEHN
Type: DG M DC ACI 1250 FM
Part No.: 972150
or equivalent.

Certificates

ACI-Technology

A further development of CI technology, ACI technology consists of a switch/spark gap combination connected in series with a heavyduty varistor. This ensures the simple design and safe operation of the surge protective device. Other features are safe dimensioning, TOV withstand, a connection cross-section of only 6 mm� Cu and zero leakage current. Surge arresters with ACI technology offer maximum safety and system availability.

Direct Current-Disconnection

When using surge arresters in d.c. applications, disconnection must be reliably ensured even if there are no zero crossings. The specifically developed DC Disconnection (DCD) technology acts as a wedge similar to a blocking valve and interrupts the direct current. Consequently, the devices of the DEHNguard SE DC series are capable of safely interrupting direct currents, thus preventing fire damage caused by d.c. switching arcs.

Technical data

SPD classification similar to EN 61643-41 / ... IEC 61643-41	Type 2 / class II
Max. continuous operating voltage (DC) [DC+ --> DC-] (U_C )	1250 V
Max. continuous operating voltage (DC) [(DC+/DC-) --> PE] (U_C )	625 V
Nominal discharge current (8/20 µs) (I_n )	10 kA
Max. nominal impulse discharge current (8/20 µs) (I_max )	20 kA
Voltage protection level [DC+ --> DC-] (U_P )	< 5 kV
Voltage protection level [(DC+/DC-) --> PE] (U_P )	< 2,5 kV
Max. short circuit withstand capability (I_SCCR )	5 kA
Type of remote signalling contact	changeover contact

SPD classification similar to EN 61643-41 / ... IEC 61643-41	Type 2 / class II
Nominal voltage DC [DC+ --> DC-] (U_N )	1250 V
Nominal voltage DC [(DC+/DC-) --> PE] (U_N )	625 V
Max. continuous operating voltage (DC) [DC+ --> DC-] (U_C )	1250 V
Max. continuous operating voltage (DC) [(DC+/DC-) --> PE] (U_C )	625 V
Nominal discharge current (8/20 µs) (I_n )	10 kA
Max. nominal impulse discharge current (8/20 µs) (I_max )	20 kA
Voltage protection level [DC+ --> DC-] (U_P )	< 5 kV
Voltage protection level [(DC+/DC-) --> PE] (U_P )	< 2,5 kV
Max. short circuit withstand capability (I_SCCR )	5 kA
Additional external fuse necessary	No
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm² solid / flexible
Cross-sectional area (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP20
Capacity	6 module(s), DIN 43880
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm² solid / flexible
Extended technical data:	---------------------------------
– For use in DC battery storage systems up to I_k	≤ 100 kA
– No response up to 1,250 V [(DC+/DC-) --> PE]	yes

Product 972150 was added to Notepad.

Go to Notepad

Product 972150 was added to the cart.

Go to Web-Shop

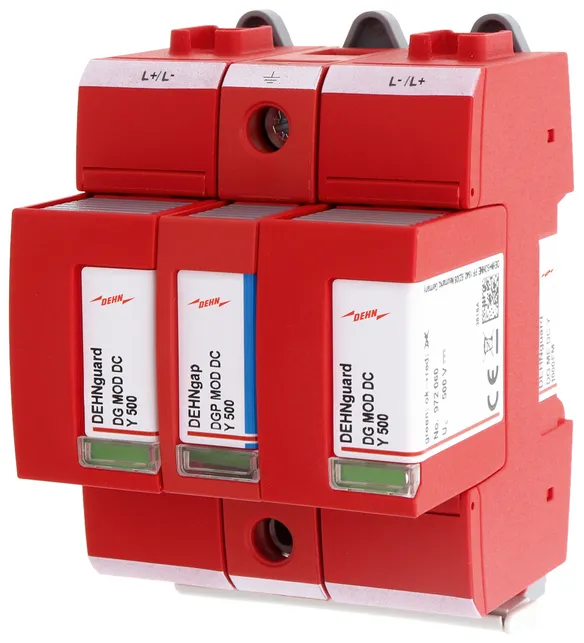

Part No. 972147 DG ME DC Y 1000 FM

GTIN 4013364519817, Customs tariff No. (EU): 85363030, Gross weight: 530.49 g, PU: 1.00 pc(s)

Images

Additional information

CAD files

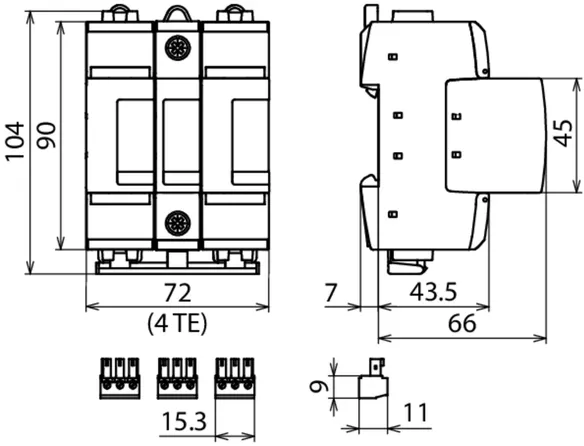

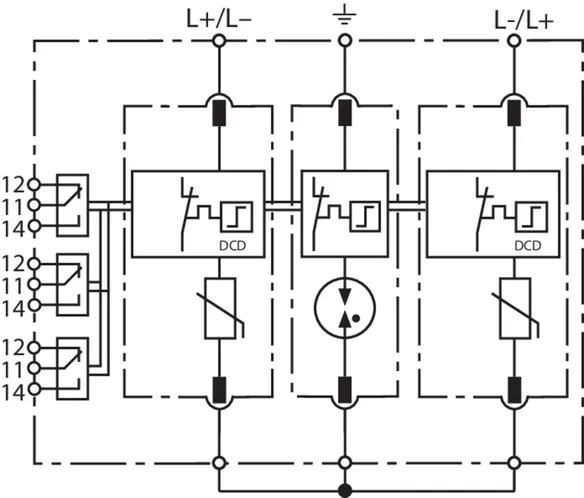

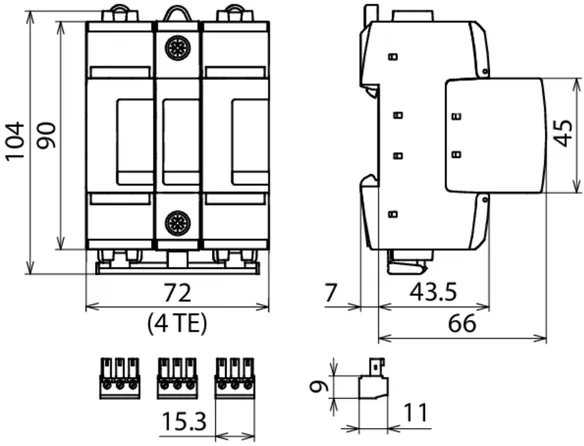

DEHNguard ME DC Y 1000 FM combined arrester, type 1+2
3-pole, modular, pluggable combined arrester
for DC applications, width of 4 DIN modules
Mechanical operating / fault state indication
Type 1+2 arrester analogous to EN 61643-11 Y circuit
consisting of leakage-current-free varistor gas discharge tube technology
Especially suitable for use in DC power circuits up to 1000 V
DC switching device DCD
Max. continuous operating voltage: 1000 V DC
Lightning impulse current 5kA (10/350µs)
Nominal discharge current: 12.5 kA (8/20µs)
Floating remote signalling contact as changeover contact
Vibration and shock-tested according to EN 60068

Brand: DEHN
Type: DG ME DC Y 1000 FM
Part No.: 972147
or equivalent.

Certificates

Direct Current-Disconnection

When using surge arresters in d.c. applications, disconnection must be reliably ensured even if there are no zero crossings. The specifically developed DC Disconnection (DCD) technology acts as a wedge similar to a blocking valve and interrupts the direct current. Consequently, the devices of the DEHNguard SE DC series are capable of safely interrupting direct currents, thus preventing fire damage caused by d.c. switching arcs.

Technical data

Lightning impulse current (10/350 µs) (I_imp )	5 kA
Nominal discharge current (8/20 µs) (I_n )	12.5 kA
Max. nominal impulse discharge current (8/20 µs) (I_max )	20 kA
Voltage protection level [DC+ --> DC-] (U_P )	< 3,75 kV
Voltage protection level [(DC+/DC-) --> PE] (U_P )	< 2,5 kV
Max. short circuit withstand capability (I_SCCR )	5 kA
Type of remote signalling contact	changeover contact

SPD classification as per IEC 61643-41	Type 1 + type 2
Nominal voltage DC [L+ --> L-] (U_N )	1000 V
Nominal voltage DC [(L+/L-) --> PE] (U_N )	500 V
Max. continuous operating voltage (DC) [L+ --> L-] (U_C )	1000 V
Max. continuous operating voltage (DC) [(L+/L-) --> PE] (U_C )	500 V
Lightning impulse current (10/350 µs) (I_imp )	5 kA
Nominal discharge current (8/20 µs) (I_n )	12.5 kA
Max. nominal impulse discharge current (8/20 µs) (I_max )	20 kA
Voltage protection level [DC+ --> DC-] (U_P )	< 3,75 kV
Voltage protection level [(DC+/DC-) --> PE] (U_P )	< 2,5 kV
Max. short circuit withstand capability (I_SCCR )	5 kA
Max. backup fuse	80 A gG
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm² solid / flexible
Cross-sectional area (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP20
Capacity	4 module(s), DIN 43880
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm² solid / flexible
Extended technical data:	---------------------------------
– For use in DC battery storage systems up to I_k	≤ 100 kA
– Backup fuse for DC battery storage systems up to I_K	Bussman HLS 2,000 V DC / 200 A 2+/A173 DST aR, manuf. part no.: 170M2040
– No response up to 1,250 V DC [L+/L- --> PE]	yes

Product 972147 was added to Notepad.

Go to Notepad

Product 972147 was added to the cart.

Go to Web-Shop

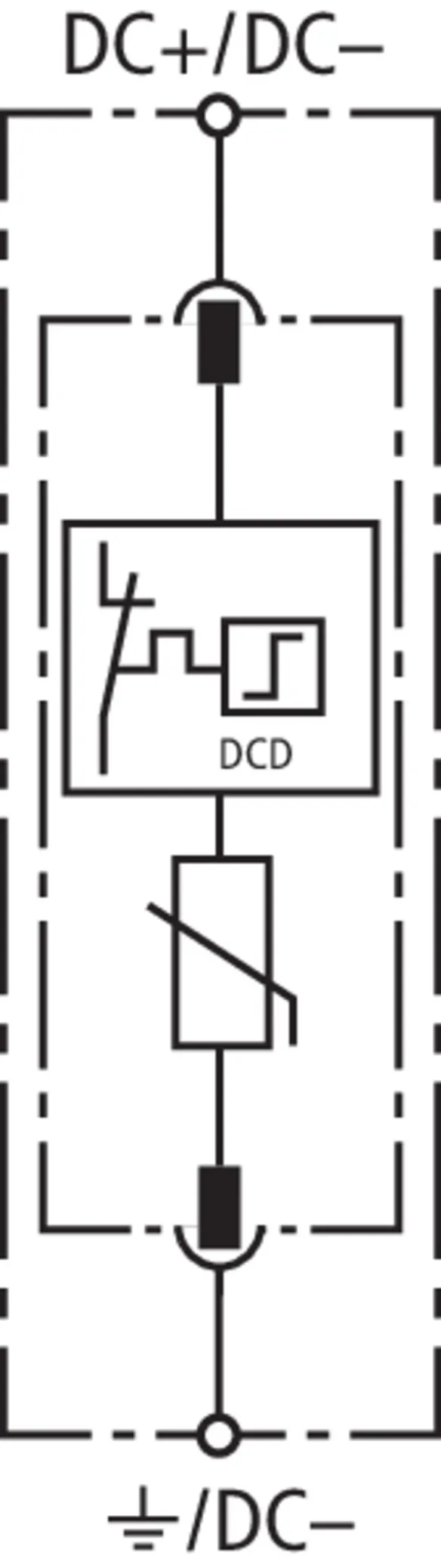

Part No. 972110 DG SE DC 60

GTIN 4013364158504, Customs tariff No. (EU): 85363030, Gross weight: 160.00 g, PU: 1.00 pc(s)

Images

Additional information

CAD files

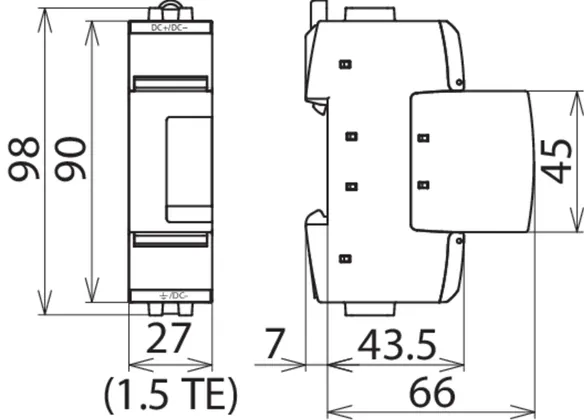

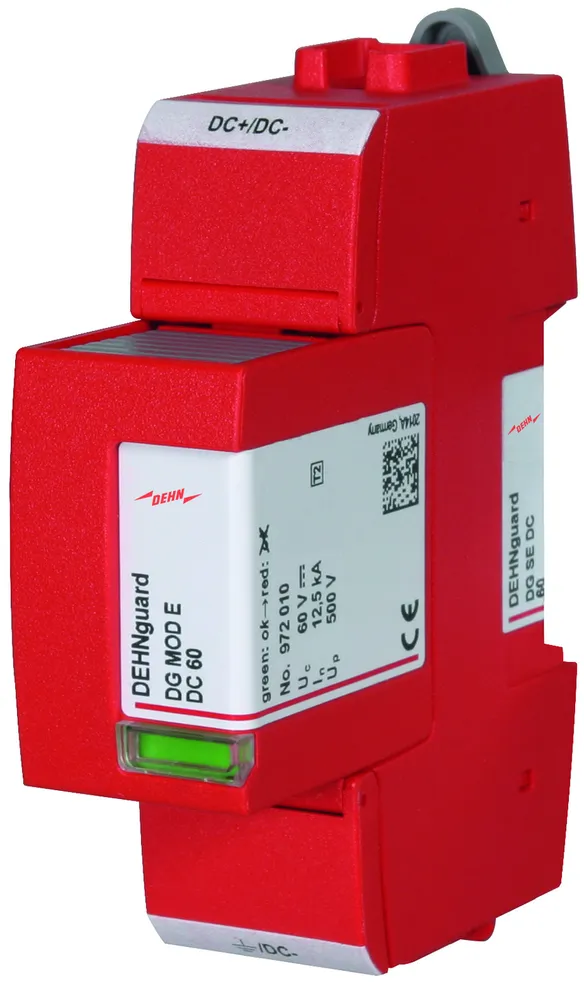

DEHNguard SE DC 60 surge arrester
Modular and pluggable single-pole surge arrester
for d.c. applications, width: 1.5 modules
Fault indication
Type 2 SPD according to EN 61643-11
Heavy-duty varistor technology
DCD d.c. switching device specifically for use in d.c. circuits
Max. continuous operating voltage: 60 V d.c.
Voltage protection level: <= 0.5 kV
Nominal discharge current: 12.5 kA
Short-circuit strength in case of
max. mains-side overcurrent protection (d.c.): 2000 A
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DG SE DC 60
Part No.: 972110
or equivalent.

Certificates

Direct Current-Disconnection

When using surge arresters in d.c. applications, disconnection must be reliably ensured even if there are no zero crossings. The specifically developed DC Disconnection (DCD) technology acts as a wedge similar to a blocking valve and interrupts the direct current. Consequently, the devices of the DEHNguard SE DC series are capable of safely interrupting direct currents, thus preventing fire damage caused by d.c. switching arcs.

Technical data

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (d.c.) (U_C )	60 V
Nominal discharge current (8/20 µs) (I_n )	12.5 kA
Voltage protection level (U_P )	≤ 0.5 kV
Short-circuit withstand capability without backup fuse (d.c.) (I_SCCR )	300 A
Short-circuit withstand capability for max. mains-side overcurrent protection (d.c.) (I_SCCR )	25 kA
Max. mains-side overcurrent protection	35 A gG

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (d.c.) (U_N )	48 V
Max. continuous operating voltage (d.c.) (U_C )	60 V
Nominal discharge current (8/20 µs) (I_n )	12.5 kA
Voltage protection level (U_P )	≤ 0.5 kV
Response time (t_A )	≤ 25 ns
Short-circuit withstand capability without backup fuse (d.c.) (I_SCCR )	300 A
Short-circuit withstand capability for max. mains-side overcurrent protection (d.c.) (I_SCCR )	25 kA
Max. mains-side overcurrent protection	35 A gG
Temporary overvoltage (TOV) DC (U_T) – characteristic	70 V / 5 sec. – withstand
Temporary overvoltage (TOV) DC, 2x U_C (U_T) – characteristic	120 V / 120 min. – safe failure
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid / flexible
Cross-sectional area (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	1.5 module(s), DIN 43880
Extended technical data:	use for safety lighting systems
– d.c. and a.c. operation	no

Product 972110 was added to Notepad.

Go to Notepad

Product 972110 was added to the cart.

Go to Web-Shop

Part No. 972120 DG SE DC 242

GTIN 4013364158528, Customs tariff No. (EU): 85363030, Gross weight: 170.00 g, PU: 1.00 pc(s)

Images

Additional information

CAD files

DEHNguard SE DC 242 surge arrester
Modular and pluggable single-pole surge arrester
for d.c. applications, width: 1.5 modules
Fault indication
Type 2 SPD according to EN 61643-11
Heavy-duty varistor technology
DCD d.c. switching device specifically for use in d.c. circuits
Max. continuous operating voltage: 242 V d.c.
Voltage protection level: <= 1.25 kV
Nominal discharge current: 12.5 kA
Short-circuit strength in case of
max. mains-side overcurrent protection (d.c.): 2000 A
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DG SE DC 242
Part No.: 972120
or equivalent.

Certificates

Direct Current-Disconnection

When using surge arresters in d.c. applications, disconnection must be reliably ensured even if there are no zero crossings. The specifically developed DC Disconnection (DCD) technology acts as a wedge similar to a blocking valve and interrupts the direct current. Consequently, the devices of the DEHNguard SE DC series are capable of safely interrupting direct currents, thus preventing fire damage caused by d.c. switching arcs.

Technical data

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (d.c.) (U_C )	242 V
Nominal discharge current (8/20 µs) (I_n )	12.5 kA
Voltage protection level (U_P )	≤ 1.25 kV
Short-circuit withstand capability without backup fuse (d.c.) (I_SCCR )	300 A
Short-circuit withstand capability for max. mains-side overcurrent protection (d.c.) (I_SCCR )	25 kA
Max. mains-side overcurrent protection	35 A gG

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (d.c.) (U_N )	220 V
Max. continuous operating voltage (d.c.) (U_C )	242 V
Nominal discharge current (8/20 µs) (I_n )	12.5 kA
Voltage protection level (U_P )	≤ 1.25 kV
Response time (t_A )	≤ 25 ns
Short-circuit withstand capability without backup fuse (d.c.) (I_SCCR )	300 A
Short-circuit withstand capability for max. mains-side overcurrent protection (d.c.) (I_SCCR )	25 kA
Max. mains-side overcurrent protection	35 A gG
Temporary overvoltage (TOV) DC (U_T) – characteristic	320 V / 5 sec. – withstand
Temporary overvoltage (TOV) DC, 2x U_C (U_T) – characteristic	484 V / 120 min. – safe failure
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid / flexible
Cross-sectional area (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DINs rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP20
Capacity	1.5 module(s), DIN 43880
Extended technical data:	use for safety lighting systems
– d.c. and a.c. operation	yes
– Max. continuous operating voltage (a.c.) (U_C )	255 V

Product 972120 was added to Notepad.

Go to Notepad

Product 972120 was added to the cart.

Go to Web-Shop

Part No. 972130 DG SE DC 550

GTIN 4013364158627, Customs tariff No. (EU): 85363030, Gross weight: 184.00 g, PU: 1.00 pc(s)

Images

Additional information

CAD files

DEHNguard SE DC 550 surge arrester
Modular and pluggable single-pole surge arrester
for d.c. applications, width: 1.5 modules
Fault indication
Type 2 SPD according to EN 61643-11
Heavy-duty varistor technology
DCD d.c. switching device specifically for use in d.c. circuits
Max. continuous operating voltage: 550 V d.c.
Voltage protection level: <= 2.0 kV
Nominal discharge current: 12.5 kA
Short-circuit strength in case of
max. mains-side overcurrent protection (d.c.): 2000 A
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DG SE DC 550
Part No.: 972130
or equivalent.

Certificates

Direct Current-Disconnection

When using surge arresters in d.c. applications, disconnection must be reliably ensured even if there are no zero crossings. The specifically developed DC Disconnection (DCD) technology acts as a wedge similar to a blocking valve and interrupts the direct current. Consequently, the devices of the DEHNguard SE DC series are capable of safely interrupting direct currents, thus preventing fire damage caused by d.c. switching arcs.

Technical data

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (d.c.) (U_C )	550 V
Nominal discharge current (8/20 µs) (I_n )	12.5 kA
Voltage protection level (U_P )	≤ 2.0 kV
Short-circuit withstand capability without backup fuse (d.c.) (I_SCCR )	200 A
Short-circuit withstand capability for max. mains-side overcurrent protection (d.c.) (I_SCCR )	25 kA
Max. mains-side overcurrent protection	35 A gG

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (d.c.) (U_N )	500 V
Max. continuous operating voltage (d.c.) (U_C )	550 V
Nominal discharge current (8/20 µs) (I_n )	12.5 kA
Voltage protection level (U_P )	≤ 2.0 kV
Response time (t_A )	≤ 25 ns
Short-circuit withstand capability without backup fuse (d.c.) (I_SCCR )	200 A
Short-circuit withstand capability for max. mains-side overcurrent protection (d.c.) (I_SCCR )	25 kA
Max. mains-side overcurrent protection	35 A gG
Temporary overvoltage (TOV) DC (U_T) – characteristic	726 V / 5 sec. – withstand
Temporary overvoltage (TOV) DC, 2x U_C (U_T) – characteristic	1100 V / 120 min. – safe failure
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm² solid / flexible
Cross-sectional area (max.)	35 mm² stranded / 25 mm²flexible
For mounting on	35 mm DINs rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP20
Capacity	1.5 module(s), DIN 43880
Extended technical data:	use for safety lighting systems
– d.c. and a.c. operation	no

Product 972130 was added to Notepad.

Go to Notepad

Product 972130 was added to the cart.

Go to Web-Shop

Part No. 972140 DG SE DC 900

GTIN 4013364158641, Customs tariff No. (EU): 85363030, Gross weight: 190.00 g, PU: 1.00 pc(s)

Images

Additional information

CAD files

DEHNguard SE DC 900 surge arrester
Modular and pluggable single-pole surge arrester
for d.c. applications, width: 1.5 modules
Type 2 SPD according to EN 61643-11
Heavy-duty varistor technology
DCD d.c. switching device specifically for use in d.c. circuits
Max. continuous operating voltage: 900 V d.c.
Voltage protection level: <= 3.0 kV
Nominal discharge current: 12.5 kA
Short-circuit strength in case of
max. mains-side overcurrent protection (d.c.): 2000 A
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DG SE DC 900
Part No.: 972140
or equivalent.

Certificates

Direct Current-Disconnection

When using surge arresters in d.c. applications, disconnection must be reliably ensured even if there are no zero crossings. The specifically developed DC Disconnection (DCD) technology acts as a wedge similar to a blocking valve and interrupts the direct current. Consequently, the devices of the DEHNguard SE DC series are capable of safely interrupting direct currents, thus preventing fire damage caused by d.c. switching arcs.

Technical data

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (d.c.) (U_C )	900 V
Nominal discharge current (8/20 µs) (I_n )	12.5 kA
Voltage protection level (U_P )	≤ 3.0 kV
Short-circuit withstand capability without backup fuse (d.c.) (I_SCCR )	100 A
Short-circuit withstand capability for max. mains-side overcurrent protection (d.c.) (I_SCCR )	25 kA
Max. mains-side overcurrent protection	80 A gPV

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (d.c.) (U_N )	750 V
Max. continuous operating voltage (d.c.) (U_C )	900 V
Nominal discharge current (8/20 µs) (I_n )	12.5 kA
Voltage protection level (U_P )	≤ 3.0 kV
Response time (t_A )	≤ 25 ns
Short-circuit withstand capability without backup fuse (d.c.) (I_SCCR )	100 A
Short-circuit withstand capability for max. mains-side overcurrent protection (d.c.) (I_SCCR )	25 kA
Max. mains-side overcurrent protection	80 A gPV
Temporary overvoltage (TOV) DC (U_T) – characteristic	1089 V / 5 sec. – withstand
Temporary overvoltage (TOV) DC, 2x U_C (U_T) – characteristic	1800 V / 120 min. – safe failure
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm² solid / flexible
Cross-sectional area (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DINs rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP20
Capacity	1.5 module(s), DIN 43880
Extended technical data:	use for safety lighting systems
– d.c. and a.c. operation	no

Product 972140 was added to Notepad.

Go to Notepad

Product 972140 was added to the cart.

Go to Web-Shop

Part No. 972115 DG SE DC 60 FM

GTIN 4013364158511, Customs tariff No. (EU): 85363030, Gross weight: 164.00 g, PU: 1.00 pc(s)

Images

Additional information

CAD files

DEHNguard SE DC 60 FM surge arrester
Modular and pluggable single-pole surge arrester

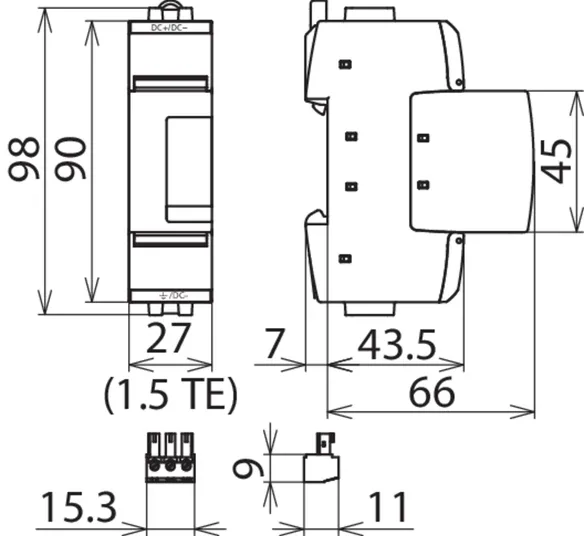

for d.c. applications, width: 1.5 modules
Fault indication
Type 2 SPD according to EN 61643-11
With remote signalling contact
Heavy-duty varistor technology

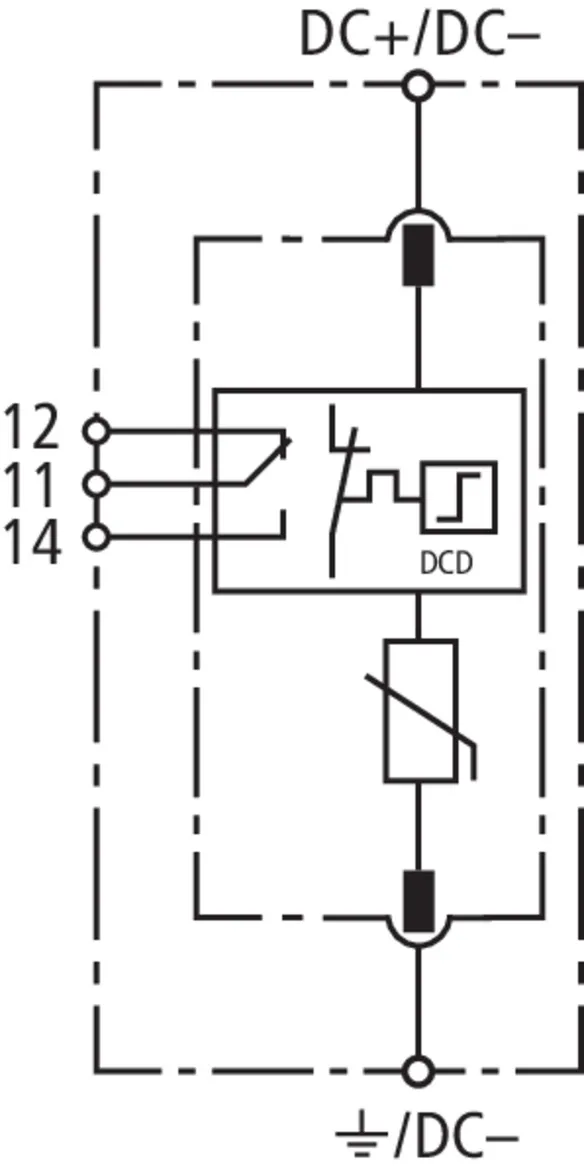

DCD d.c. switching device specifically for use in d.c. circuits
Max. continuous operating voltage: 60 V d.c.
Voltage protection level: <= 0.5 kV
Nominal discharge current: 12.5 kA
Short-circuit strength in case of
max. mains-side overcurrent protection (d.c.): 2000 A
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DG SE DC 60 FM
Part No.: 972115
or equivalent.

Certificates

Direct Current-Disconnection

When using surge arresters in d.c. applications, disconnection must be reliably ensured even if there are no zero crossings. The specifically developed DC Disconnection (DCD) technology acts as a wedge similar to a blocking valve and interrupts the direct current. Consequently, the devices of the DEHNguard SE DC series are capable of safely interrupting direct currents, thus preventing fire damage caused by d.c. switching arcs.

Technical data

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (d.c.) (U_C )	60 V
Nominal discharge current (8/20 µs) (I_n )	12.5 kA
Voltage protection level (U_P )	≤ 0.5 kV
Short-circuit withstand capability without backup fuse (d.c.) (I_SCCR )	300 A
Short-circuit withstand capability for max. mains-side overcurrent protection (d.c.) (I_SCCR )	25 kA
Max. mains-side overcurrent protection	35 A gG
Type of remote signalling contact	changeover contact

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (d.c.) (U_N )	48 V
Max. continuous operating voltage (d.c.) (U_C )	60 V
Nominal discharge current (8/20 µs) (I_n )	12.5 kA
Voltage protection level (U_P )	≤ 0.5 kV
Response time (t_A )	≤ 25 ns
Short-circuit withstand capability without backup fuse (d.c.) (I_SCCR )	300 A
Short-circuit withstand capability for max. mains-side overcurrent protection (d.c.) (I_SCCR )	25 kA
Max. mains-side overcurrent protection	35 A gG
Temporary overvoltage (TOV) DC (U_T) – characteristic	70 V / 5 sec. – withstand
Temporary overvoltage (TOV) DC, 2x U_C (U_T) – characteristic	120 V / 120 min. – safe failure
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm² solid / flexible
Cross-sectional area (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP20
Capacity	1.5 module(s), DIN 43880
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm² solid / flexible
Extended technical data:	use for safety lighting systems
– d.c. and a.c. operation	no

Product 972115 was added to Notepad.

Go to Notepad

Product 972115 was added to the cart.

Go to Web-Shop

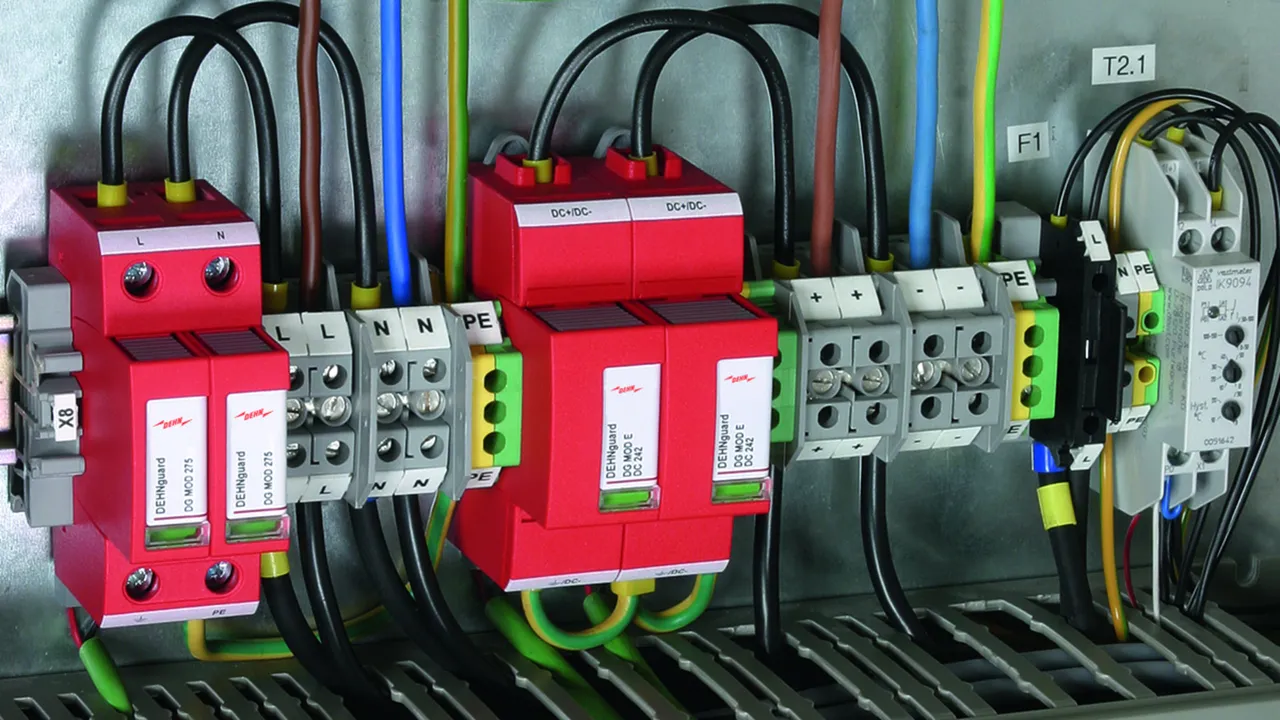

Part No. 972125 DG SE DC 242 FM

GTIN 4013364158610, Customs tariff No. (EU): 85363030, Gross weight: 174.00 g, PU: 1.00 pc(s)

Images

Additional information

CAD files

DEHNguard SE DC 242 FM surge arrester
Modular and pluggable single-pole surge arrester

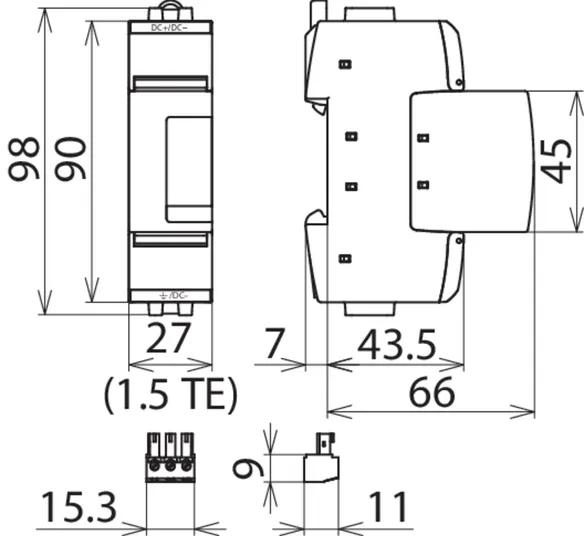

for d.c. applications, width: 1.5 modules
Fault indication
Type 2 SPD according to EN 61643-11
With remote signalling contact
Heavy-duty varistor technology

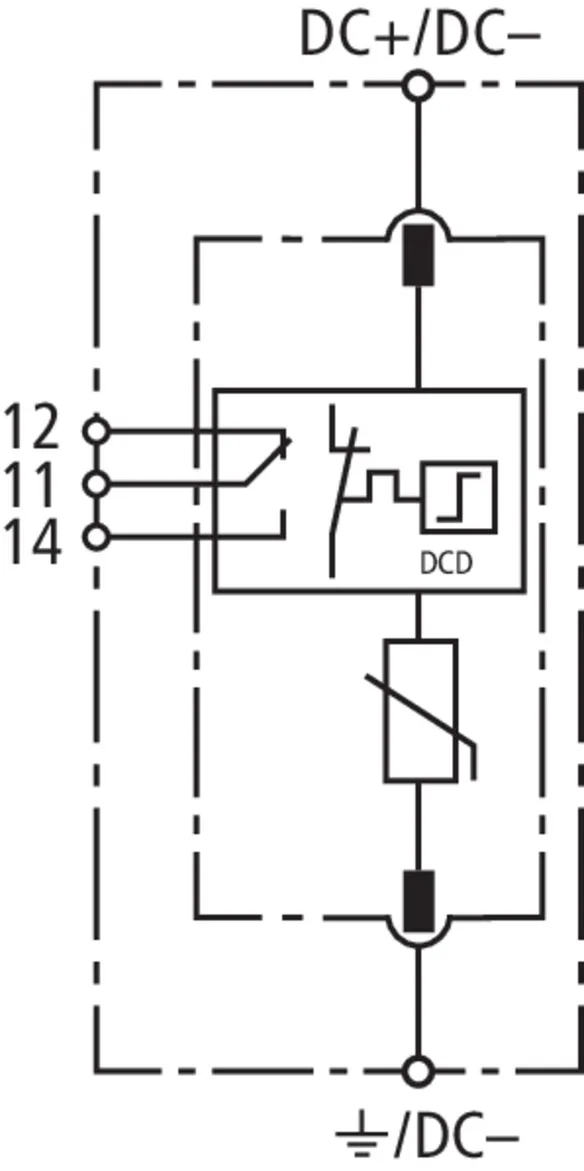

DCD d.c. switching device specifically for use in d.c. circuits
Max. continuous operating voltage: 242 V d.c.
Voltage protection level: <= 1.25 kV
Nominal discharge current: 12.5 kA
Short-circuit strength in case of
max. mains-side overcurrent protection (d.c.): 2000 A
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DG SE DC 242 FM
Part No.: 972125
or equivalent.

Certificates

Direct Current-Disconnection

When using surge arresters in d.c. applications, disconnection must be reliably ensured even if there are no zero crossings. The specifically developed DC Disconnection (DCD) technology acts as a wedge similar to a blocking valve and interrupts the direct current. Consequently, the devices of the DEHNguard SE DC series are capable of safely interrupting direct currents, thus preventing fire damage caused by d.c. switching arcs.

Technical data

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (d.c.) (U_C )	242 V
Nominal discharge current (8/20 µs) (I_n )	12.5 kA
Voltage protection level (U_P )	≤ 1.25 kV
Short-circuit withstand capability without backup fuse (d.c.) (I_SCCR )	300 A
Short-circuit withstand capability for max. mains-side overcurrent protection (d.c.) (I_SCCR )	25 kA
Max. mains-side overcurrent protection	35 A gG
Type of remote signalling contact	changeover contact

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (d.c.) (U_N )	220 V
Max. continuous operating voltage (d.c.) (U_C )	242 V
Nominal discharge current (8/20 µs) (I_n )	12.5 kA
Voltage protection level (U_P )	≤ 1.25 kV
Response time (t_A )	≤ 25 ns
Short-circuit withstand capability without backup fuse (d.c.) (I_SCCR )	300 A
Short-circuit withstand capability for max. mains-side overcurrent protection (d.c.) (I_SCCR )	25 kA
Max. mains-side overcurrent protection	35 A gG
Temporary overvoltage (TOV) DC (U_T) – characteristic	320 V / 5 sec. – withstand
Temporary overvoltage (TOV) DC, 2x U_C (U_T) – characteristic	484 V / 120 min. – safe failure
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm² solid / flexible
Cross-sectional area (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP20
Capacity	1.5 module(s), DIN 43880
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm² solid / flexible
Extended technical data:	use for safety lighting systems
– d.c. and a.c. operation	yes
– Max. continuous operating voltage (a.c.) (U_C )	255 V

Product 972125 was added to Notepad.

Go to Notepad

Product 972125 was added to the cart.

Go to Web-Shop

Part No. 972135 DG SE DC 550 FM

GTIN 4013364158634, Customs tariff No. (EU): 85363030, Gross weight: 189.00 g, PU: 1.00 pc(s)

Images

Additional information

CAD files

DEHNguard SE DC 550 FM surge arrester
Modular and pluggable single-pole surge arrester
for d.c. applications, width: 1.5 modules
Fault indication
Type 2 SPD according to EN 61643-11
With remote signalling contact
Heavy-duty varistor technology
DCD d.c. switching device specifically for use in d.c. circuits
Max. continuous operating voltage: 550 V d.c.
Voltage protection level: <= 2.0 kV
Nominal discharge current: 12.5 kA
Short-circuit strength in case of
max. mains-side overcurrent protection (d.c.): 2000 A
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DG SE DC 550 FM
Part No.: 972135
or equivalent.

Certificates

Direct Current-Disconnection

When using surge arresters in d.c. applications, disconnection must be reliably ensured even if there are no zero crossings. The specifically developed DC Disconnection (DCD) technology acts as a wedge similar to a blocking valve and interrupts the direct current. Consequently, the devices of the DEHNguard SE DC series are capable of safely interrupting direct currents, thus preventing fire damage caused by d.c. switching arcs.

Technical data

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (d.c.) (U_C )	550 V
Nominal discharge current (8/20 µs) (I_n )	12.5 kA
Voltage protection level (U_P )	≤ 2.0 kV
Short-circuit withstand capability without backup fuse (d.c.) (I_SCCR )	200 A
Short-circuit withstand capability for max. mains-side overcurrent protection (d.c.) (I_SCCR )	25 kA
Max. mains-side overcurrent protection	35 A gG
Type of remote signalling contact	changeover contact

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (d.c.) (U_N )	500 V
Max. continuous operating voltage (d.c.) (U_C )	550 V
Nominal discharge current (8/20 µs) (I_n )	12.5 kA
Voltage protection level (U_P )	≤ 2.0 kV
Response time (t_A )	≤ 25 ns
Short-circuit withstand capability without backup fuse (d.c.) (I_SCCR )	200 A
Short-circuit withstand capability for max. mains-side overcurrent protection (d.c.) (I_SCCR )	25 kA
Max. mains-side overcurrent protection	35 A gG
Temporary overvoltage (TOV) DC (U_T) – characteristic	726 V / 5 sec. – withstand
Temporary overvoltage (TOV) DC, 2x U_C (U_T) – characteristic	1100 V / 120 min. – safe failure
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm² solid / flexible
Cross-sectional area (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP20
Capacity	1.5 module(s), DIN 43880
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm² solid / flexible
Extended technical data:	use for safety lighting systems
– d.c. and a.c. operation	no

Product 972135 was added to Notepad.

Go to Notepad

Product 972135 was added to the cart.

Go to Web-Shop

Part No. 972145 DG SE DC 900 FM

GTIN 4013364158658, Customs tariff No. (EU): 85363030, Gross weight: 194.00 g, PU: 1.00 pc(s)

Images

Additional information

CAD files

DEHNguard SE DC 900 FM surge arrester
Modular and pluggable single-pole surge arrester
for d.c. applications, width: 1.5 modules
Fault indication
Type 2 SPD according to EN 61643-11
With remote signalling contact
Heavy-duty varistor technology
DCD d.c. switching device specifically for use in d.c. circuits
Max. continuous operating voltage: 900 V d.c.
Voltage protection level: <= 3.0 kV
Nominal discharge current: 12.5 kA
Short-circuit strength in case of
max. mains-side overcurrent protection (d.c.): 2000 A
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DG SE DC 900 FM
Part No.: 972145
or equivalent.

Certificates

Direct Current-Disconnection

When using surge arresters in d.c. applications, disconnection must be reliably ensured even if there are no zero crossings. The specifically developed DC Disconnection (DCD) technology acts as a wedge similar to a blocking valve and interrupts the direct current. Consequently, the devices of the DEHNguard SE DC series are capable of safely interrupting direct currents, thus preventing fire damage caused by d.c. switching arcs.

Technical data

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (d.c.) (U_C )	900 V
Nominal discharge current (8/20 µs) (I_n )	12.5 kA
Voltage protection level (U_P )	≤ 3.0 kV
Short-circuit withstand capability without backup fuse (d.c.) (I_SCCR )	100 A
Short-circuit withstand capability for max. mains-side overcurrent protection (d.c.) (I_SCCR )	25 kA
Max. mains-side overcurrent protection	80 A gPV
Type of remote signalling contact	changeover contact

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (d.c.) (U_N )	750 V
Max. continuous operating voltage (d.c.) (U_C )	900 V
Nominal discharge current (8/20 µs) (I_n )	12.5 kA
Voltage protection level (U_P )	≤ 3.0 kV
Response time (t_A )	≤ 25 ns
Short-circuit withstand capability without backup fuse (d.c.) (I_SCCR )	100 A
Short-circuit withstand capability for max. mains-side overcurrent protection (d.c.) (I_SCCR )	25 kA
Max. mains-side overcurrent protection	80 A gPV
Temporary overvoltage (TOV) DC (U_T) – characteristic	1089 V / 5 sec. – withstand
Temporary overvoltage (TOV) DC, 2x U_C (U_T) – characteristic	1800 V / 120 min. – safe failure
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm² solid / flexible
Cross-sectional area (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP20
Capacity	1.5 module(s), DIN 43880
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm² solid / flexible
Extended technical data:	use for safety lighting systems
– d.c. and a.c. operation	no

Product 972145 was added to Notepad.

Go to Notepad

Product 972145 was added to the cart.

Go to Web-Shop

DEHNguard ME/SE DC ... (FM)

DEHNguard M DC ACI 1250 FM

Part No. 972150 DG M DC ACI 1250 FM

You are not authorized to download 972150m_D_EN.dxf

ACI-Technology

Direct Current-Disconnection

Product 972150 was added to Notepad.

Product 972150 was added to the cart.

DEHNguard ME DC ... FM

Part No. 972147 DG ME DC Y 1000 FM

You are not authorized to download 972147.stp

You are not authorized to download 972147.igs

You are not authorized to download 972147.jt

You are not authorized to download 972147.dwg

You are not authorized to download 972147m_E.dxf

Direct Current-Disconnection

Product 972147 was added to Notepad.

Product 972147 was added to the cart.

DEHNguard SE DC ...

Part No. 972110 DG SE DC 60

You are not authorized to download 972120.stp

You are not authorized to download 972120.igs

You are not authorized to download 972120.jt

You are not authorized to download 972120.dwg

You are not authorized to download 972110m_E.dxf

You are not authorized to download DEHN.972110.wspak

You are not authorized to download DEHN.972110.edz

Direct Current-Disconnection

Product 972110 was added to Notepad.

Product 972110 was added to the cart.

Part No. 972120 DG SE DC 242

You are not authorized to download 972120.stp

You are not authorized to download 972120.igs

You are not authorized to download 972120.jt

You are not authorized to download 972120.dwg

You are not authorized to download 972110m_E.dxf

You are not authorized to download DEHN.972120.wspak

You are not authorized to download DEHN.972120.edz

Direct Current-Disconnection

Product 972120 was added to Notepad.

Product 972120 was added to the cart.

Part No. 972130 DG SE DC 550

You are not authorized to download 972120.stp

You are not authorized to download 972120.igs

You are not authorized to download 972120.jt

You are not authorized to download 972120.dwg

You are not authorized to download 972110m_E.dxf

You are not authorized to download DEHN.972130.wspak

You are not authorized to download DEHN.972130.edz

Direct Current-Disconnection

Product 972130 was added to Notepad.

Product 972130 was added to the cart.

Part No. 972140 DG SE DC 900

You are not authorized to download 972120.stp

You are not authorized to download 972120.igs

You are not authorized to download 972120.jt

You are not authorized to download 972120.dwg

You are not authorized to download 972110m_E.dxf

You are not authorized to download DEHN.972140.wspak

You are not authorized to download DEHN.972140.edz

Direct Current-Disconnection

Product 972140 was added to Notepad.

Product 972140 was added to the cart.

DEHNguard SE DC ... FM

Part No. 972115 DG SE DC 60 FM

You are not authorized to download 972125.stp

You are not authorized to download 972125.igs

You are not authorized to download 972125.jt

You are not authorized to download 972125.dwg

You are not authorized to download 972115m_E.dxf

You are not authorized to download DEHN.972115.wspak

You are not authorized to download DEHN.972115.edz

Direct Current-Disconnection

Product 972115 was added to Notepad.

Product 972115 was added to the cart.

Part No. 972125 DG SE DC 242 FM

You are not authorized to download 972125.stp

You are not authorized to download 972125.igs

You are not authorized to download 972125.jt

You are not authorized to download 972125.dwg
