MAXI MV Clamps

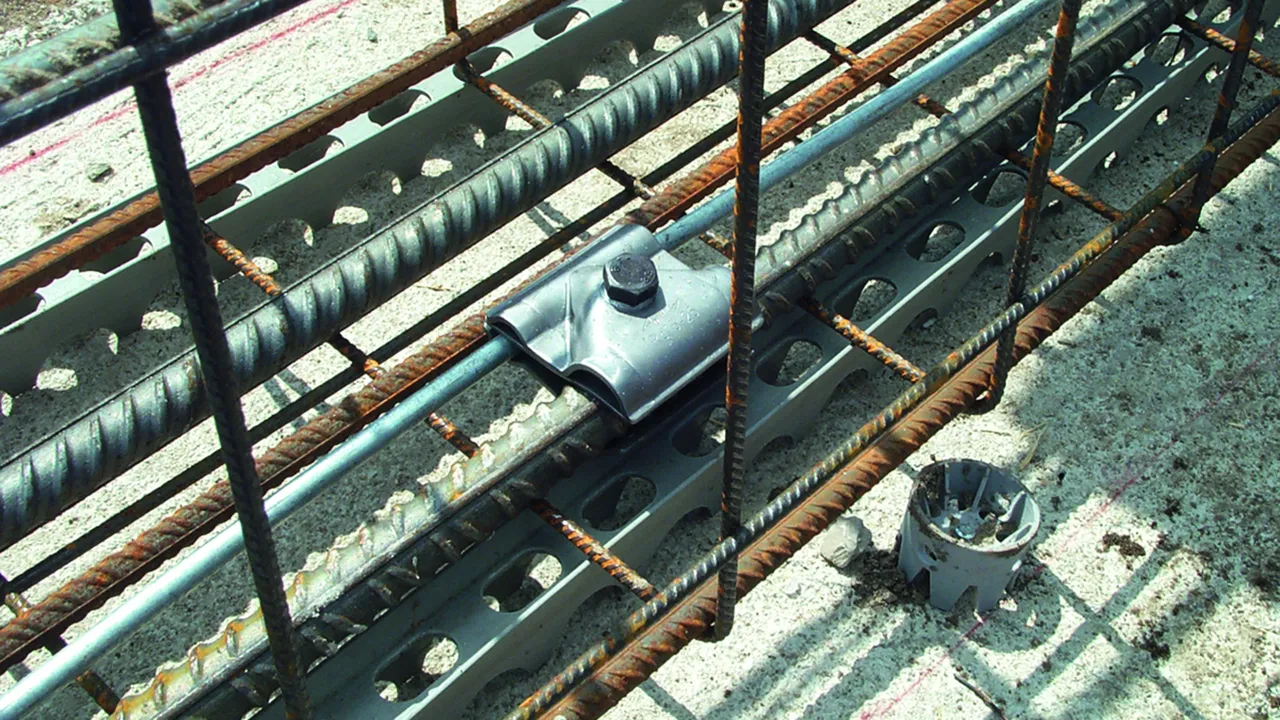

MAXI multipurpose connecting clamp (MAXI-MehrzweckVerbindungs-Klemme) for universal use as a cross clamp, T clamp and parallel clamp, for connecting earth rods or reinforcing bars; three-piece, with thread in the base part.

With hexagon screw

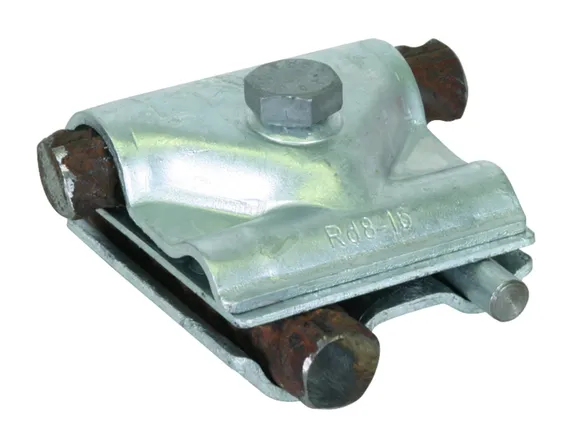

Art.-Nr. 308041

MAMVK 8.16 15.25 STTZN

item

With defined tightening torque

Reliable mounting quality due to constant torque and defined clamping force
Easy mounting without torque spanner
Enormously time saving compared to exothermic welding
No welding smoke hazard for the installer
No environmental risk

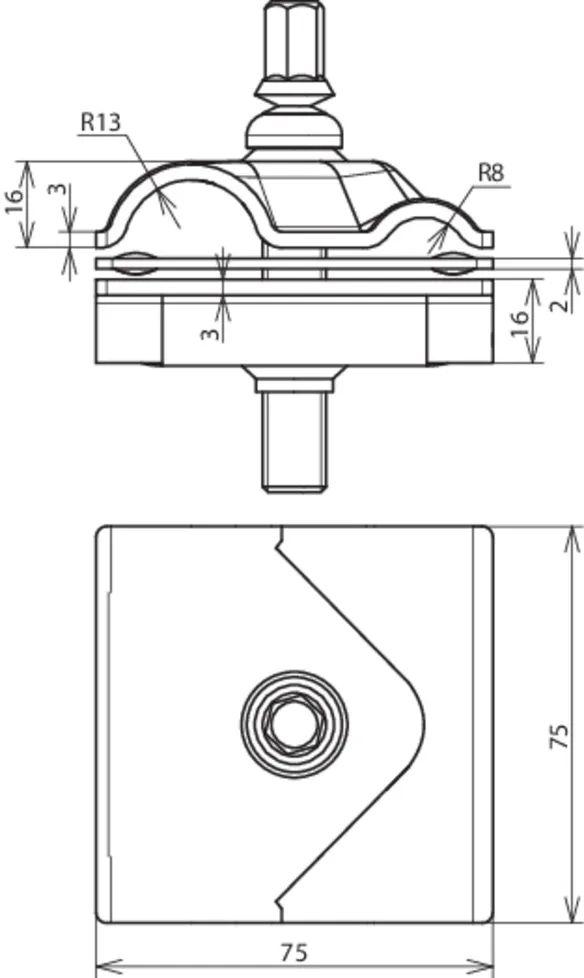

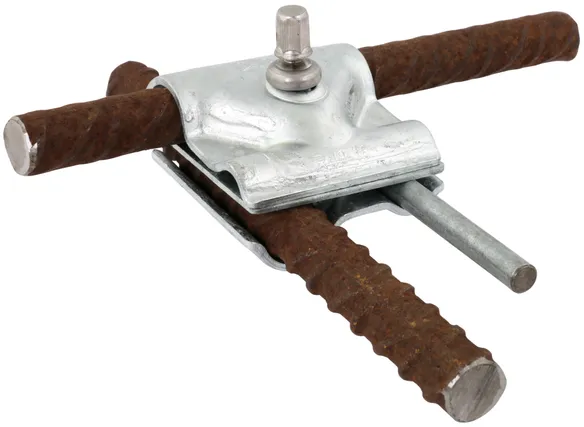

Art.-Nr. 308044

MAMVK 8.16 15.25 STTZN ARS35NM PAR 20P

New

item

With hexagon screw

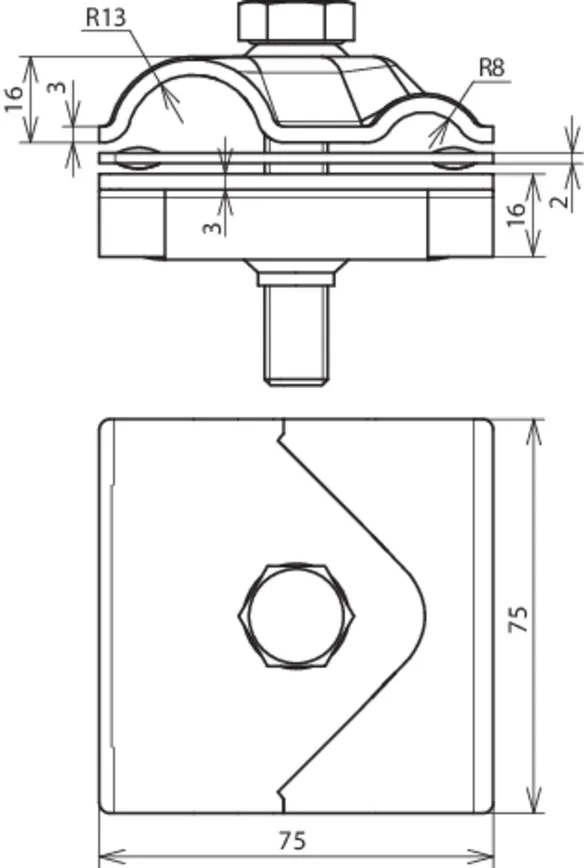

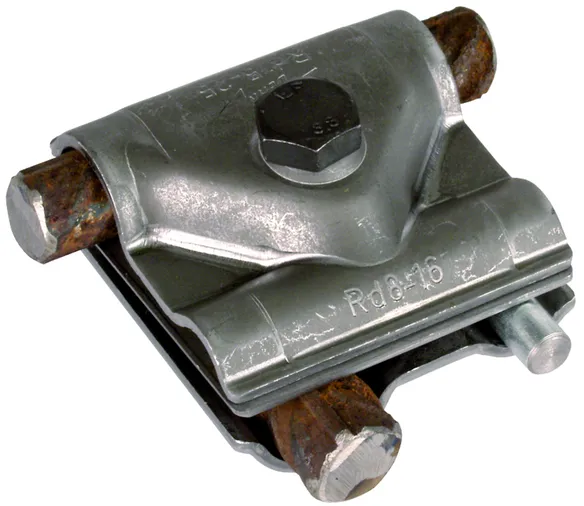

Art.-Nr. 308040

MAMVK 8.16 15.25 STBL

item

Material of clamp	St/tZn
Clamping range Rd	8-16 / 15-25 mm
Material thickness	3.0 / 2.0 mm
Standard	EN 62561-1
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	6.2 kA

Material of clamp	St/tZn
Clamping range Rd	8-16 / 15-25 mm
Material thickness	3.0 / 2.0 mm
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	6.2 kA

Material of clamp	St/bare
Clamping range Rd	8-16 / 15-25 mm
Material thickness	3.0 / 2.0 mm
Standard	EN 62561-1
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	10.2 kA
Approval	UL 467
