DEHNbloc Maxi

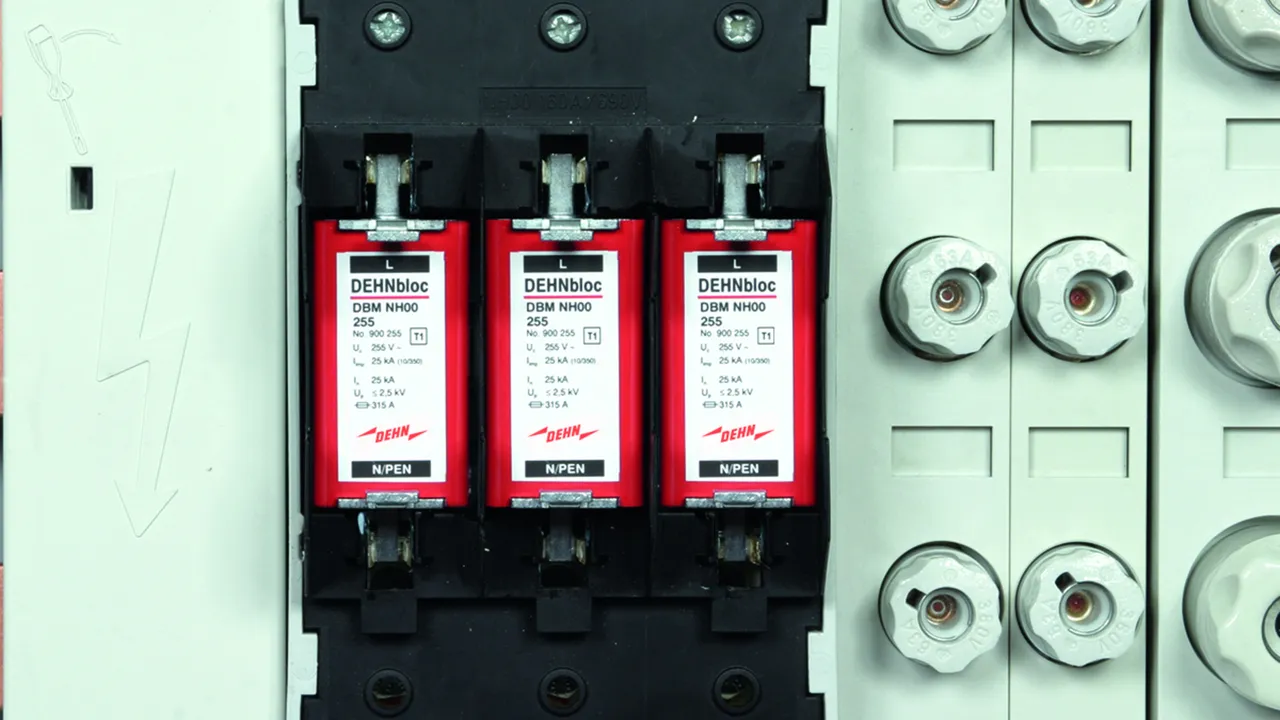

:quality(98)/www.dehn-africa.com/store/f/50025696/HDVORSCHAU/900255a2_16-9.jpg)
:quality(98)/www.dehn-africa.com/store/f/50025696/HDVORSCHAU/900255a2_16-9.jpg)
- Encapsulated RADAX Flow spark gap with high follow current limitation
- No tripping of 32 A gG fuses up to short-circuit currents of 50 kArms
- High lightning current discharge capacity
- Directly coordinated with DEHNguard ... and V(A) NH ... surge protective devices without additional cable length
- NH00 design
- Low voltage protection level
Details

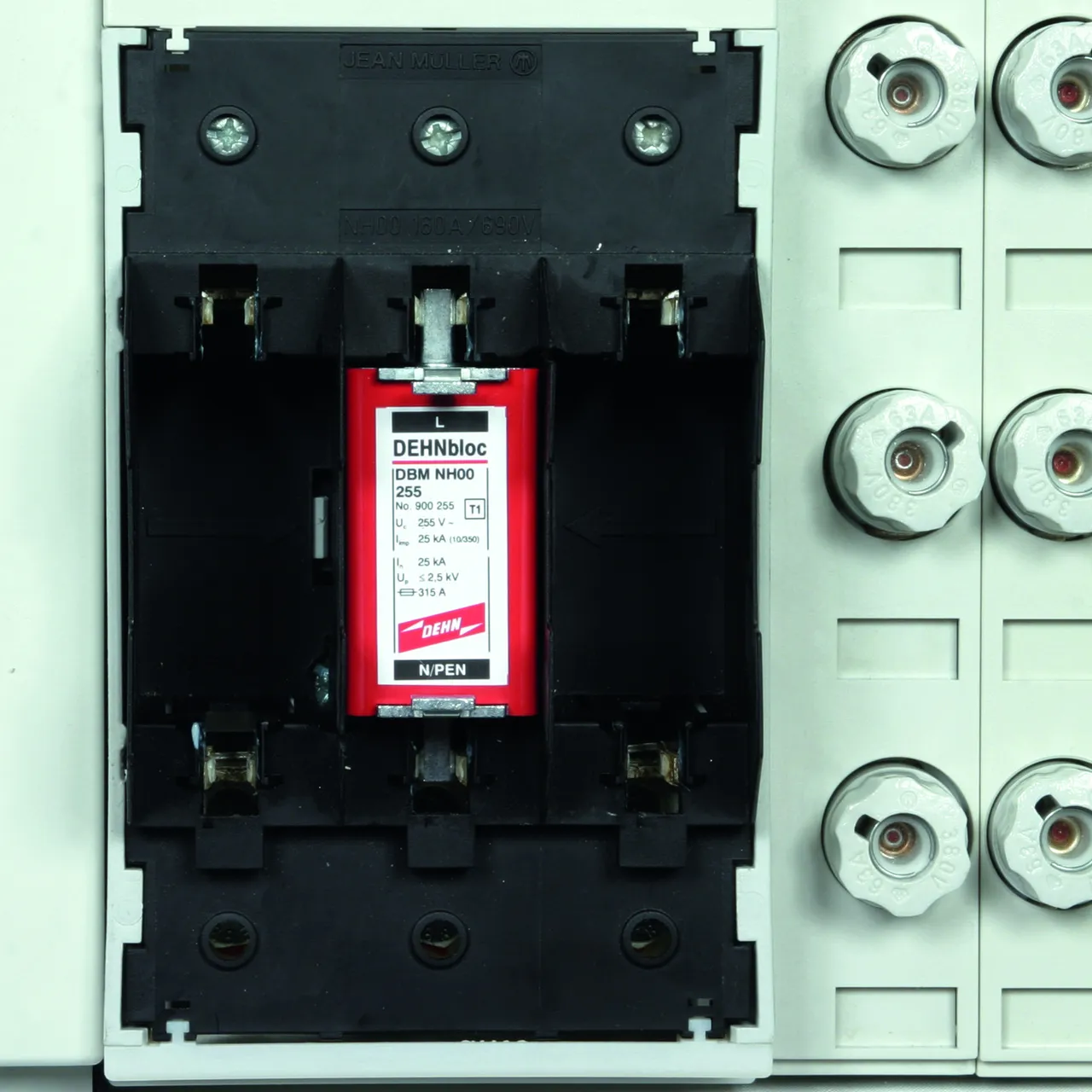

:quality(98)/www.dehn-africa.com/store/f/50025697/HDVORSCHAU/900255a1_Kat.jpg)
:quality(98)/www.dehn-africa.com/store/f/50025697/HDVORSCHAU/900255a1_Kat.jpg)

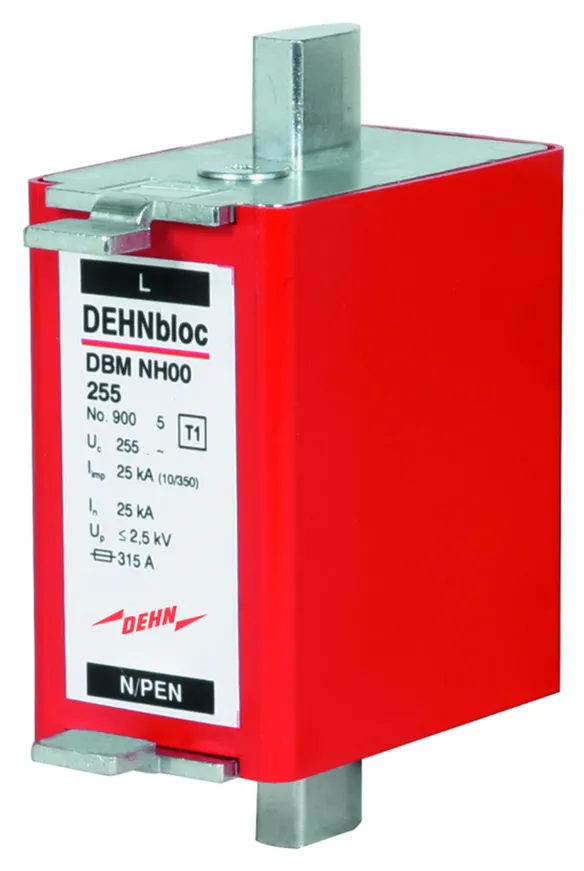

Part No. 900255 DBM NH00 255
GTIN 4013364125773, Customs tariff No. (EU): 85363090, Gross weight: 208.00 g, PU: 1.00 pc(s)
PredecessorTechnical data
SPD according to EN 61643-11 / IEC 61643-11 | type 1 / class I |
Max. continuous operating voltage (a.c.) (UC ) | 255 V (50 / 60 Hz) |
Lightning impulse current (10/350 µs) (Iimp ) | 25 kA |
Voltage protection level (UP ) | ≤ 2.5 kV |
Max. backup fuse (L) up to IK = 50 kArms | 315 A gG |
