These couplings facilitate deep driving of the rods and ensure continuous contact between the rods during and after installation. The couplings also protect the earth rod threads during installation with the steel driving head connected to these couplings. Manufactured from high copper content alloy ensuring high resistance to corrosion and good strength.

Range of Earth Rods for the installation in Lightning Protection Systems and Earthing applications in various conditions, including Couplers and other neccessary accessories for installation.

25 x 6 mm, 5 hole copper earth bars for fitting inside earth pits, for connecting of multiple earths.

BS EN 13601 C101

For bonding general pipes or rainwater down pipes to lightning condutors.
Clamping range adjustable.

Copper tape and aluminium tape are extra items.

For solid copper earth rods and stainless steel earth rods

Earth rod inspection pits

The earth rod seal is fitted when the earth rod connection is below the water level and where there is a possibility of water entering the inspection housing from below ground.
Earth seals are specifically designed to suit earth rods of various diameters from 1/2” to 3/4”. These seals are used along with earth pits.

Marconite^®
By adding MARCONITE instead of sand and aggregate in a standard concrete mixture, a highly conductive concrete is formed. Used as a backfill material around the earth electrodes, it provides a conductive medium increasing the surface area of the electrode and ensuring a highly conductive path between the earth electrode and the surrounding ground. As it is concrete based, it cures and provides a permanent solution.

Bentonite
BENTONITE is a moisture retaining clay consisting of sodium montmorillonite. By mixing BENTONITE with water, the resultant slurry will swell and multiply its original dry volume. When used as a backfill material, within a borehole earth system, it will continue to absorb water from the surrounding soil - thus helping provide a stable earth resistance. This is also applies when the clay is used to surround earth plates and lattice mats. It strongly adheres to the earth electrodes ensuring good electrical conductivity between the electrodes and surrounding ground.

For clamping standard earth rods to round conductors or cables.

Made from high strength silicon bronze.

Made from high strength silicon bronze.

Universal clamp for round to flat conductors can also be used on re-bars.

Used to bond copper or aluminium tape to metal surfaces.

ETP Copper-C110 to C101

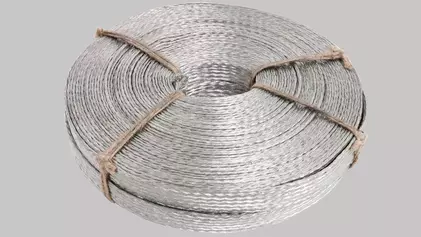

For connecting metal sheathings or as expansion piece.
